  13. Industrial Snap Action Switch, Panel Mount, Plunger, Roller Actuator, SPDT

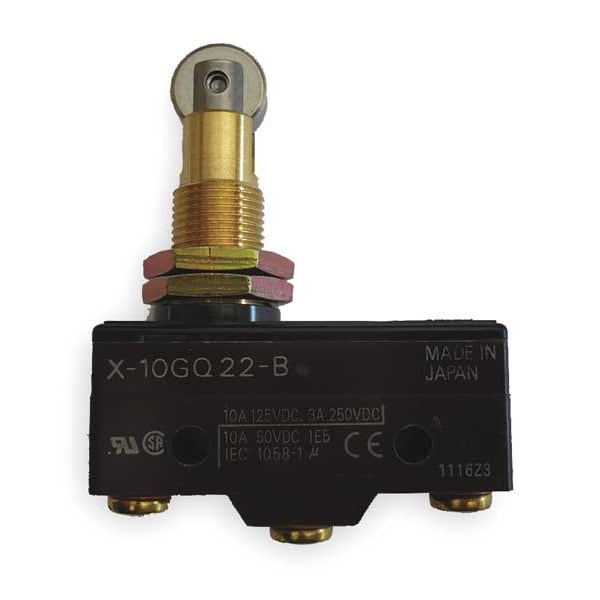

Omron Industrial Snap Action Switch, Panel Mount, Plunger, Roller Actuator, SPDT X-10GQ22-B - main

Industrial Snap Action Switch, Panel Mount, Plunger, Roller Actuator, SPDT

  • Mfr # X-10GQ22-B

  • Zoro # G1531704

product price: $32.35
/ea

Key Features

Actuator Type - Snap Action Switch
Panel Mount, Plunger, Roller
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Height - Snap Action Switch
1.01 in
Width - Snap Action Switch
1.94 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
X-10GQ22-B
Zoro #
G1531704
UPC #
-
Country of Origin
Japan

Dimensions

Height - Snap Action Switch
1.01 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Mounting Dimension - Snap Action Switch
1.00 in Centers
Depth
0.69"
Actuator Length
1.35"
Mounting Dimension
1.00" Centers
Length
1.94"
Height
1.01"
Body Height
0.77 in
Overall Height
0.77 in
Overall Depth
2.49 in
Roller Diameter
0.5 in
Body Width
1.94 in
Roller Width
0.19 in
Overall Width
1.94 in
Mounting Hole Diameter
3/16 in
Body Depth
2.49 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Panel Mount, Plunger, Roller
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Electrical Connection - Snap Action Switch
Screw
Current Rating
10A
Operating Force
18 oz
Max. Pretravel
0.035 in
Terminal Type
Screw
Over Travel
0.14 in
Operating Temp. Range
-13 Degrees to 176 Degrees F
Series
X
Standards
CE, CSA, RU
Contact Form
1NO/1NC
Voltage Rating
125VDC
Differential Travel
0.007 in
Housing Material
Phenolic
Release Force
4.03 ozf
Watertight - Snap Action Switch
No
Type of Actuator
Panel Mount Roller Plunger
Includes
Threaded Neck with Nuts
DC Contact Rating
10 A @ 120 V
AC Contact Rating
2 A @250 V
Roller Material
Stainless Steel
Electrical Connection
Screw
Operating Temperature - Minimum
-13 Degrees F
Operating Force - Minimum
5 N
Actuator Style
Roller Plunger
Operating Temperature - Maximum
176 Degrees F
Overtravel
0.005 in
Center Mounting Hole Distance
1 in
Body Material
Phenolic
Pretravel
0.217 in
Roller Position
Offset
Differential Travel - Maximum
0.0071 in
Operating Force - Maximum
5 N
Roller Adjustability
Fixed

Description

Snap Action Switch, Panel Mount, Plunger, Roller, DC Contact Rating - Snap Action Switch 10 A @ 120 V, Contact Form- Switches SPDT, Height - Snap Action Switch 1.01 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series X
