Shop OMRON

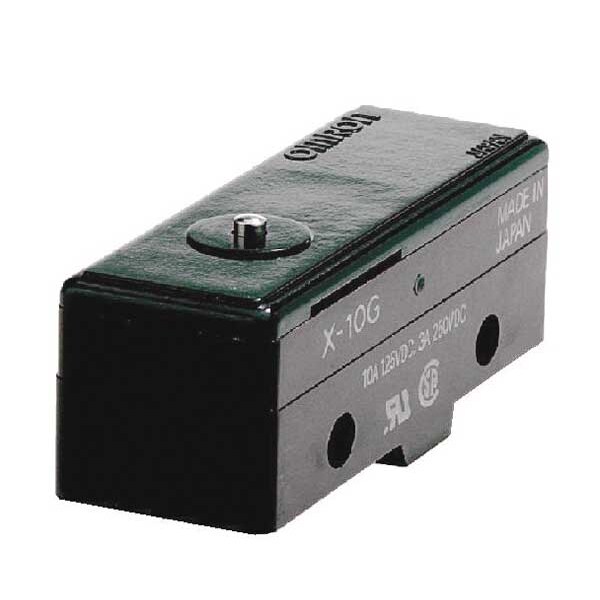

Industrial Snap Action Switch, Pin, Plunger Actuator, SPDT

  • Mfr # X-10G-B

  • Zoro # G0899403

product price:
$
18.89
/ea

Key Features

Actuator Type - Snap Action Switch
Pin, Plunger
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Height - Snap Action Switch
0.95 in
Mounting Dimension
1.00" Centers
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
X-10G-B
Zoro #
G0899403
UPC #
-
Country of Origin
Japan

Dimensions

Height - Snap Action Switch
0.95 in
Mounting Dimension
1.00" Centers
Mounting Dimension - Snap Action Switch
1.00 in Centers
Height
0.95
Overall Width
1.94 in
Mounting Hole Diameter
3/16 in
Body Depth
1.16 in
Overall Height
0.69 in
Body Width
1.94 in
Overall Depth
1.16 in
Body Height
0.69 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Pin, Plunger
DC Contact Rating - Snap Action Switch
10 A @ 120 V
Contact Form- Switches
SPDT
Over Travel
0.01 in
Type of Actuator
Pin Plunger
Electrical Connection - Snap Action Switch
Screw
Voltage Rating
125VDC
Operating Force
18 oz
Series
X
Housing Material
Phenolic
Operating Temp. Range
-13 Degrees to 176 Degrees F
Watertight - Snap Action Switch
No
Current Rating
10A
Terminal Type
Screw
Max. Pretravel
0.035 in
Release Force
4.03 ozf
Contact Form
1NO/1NC
Differential Travel
0.007 in
Standards
CE, CSA, RU
Includes
Stainless-Steel Actuator
DC Contact Rating
10 A @ 125 V
AC Contact Rating
2 A @250 V
Differential Travel - Maximum
0.0071 in
Electrical Connection
Screw Terminal
Center Mounting Hole Distance
1 in
Operating Force - Minimum
5 N
Operating Force - Maximum
5 N
Operating Temperature - Minimum
-13 Degrees F
Actuator Style
Pin Plunger
Pretravel
0.035 in
Roller Adjustability
Fixed
Operating Temperature - Maximum
176 Degrees F
Overtravel
0.005 in
Body Material
Phenolic
Mounting Hole Horizontal Center to Center Distance
1 in

Description

Snap Action Switch, Pin, Plunger, DC Contact Rating - Snap Action Switch 10 A @ 120 V, Contact Form- Switches SPDT, Height - Snap Action Switch 0.95 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series X
