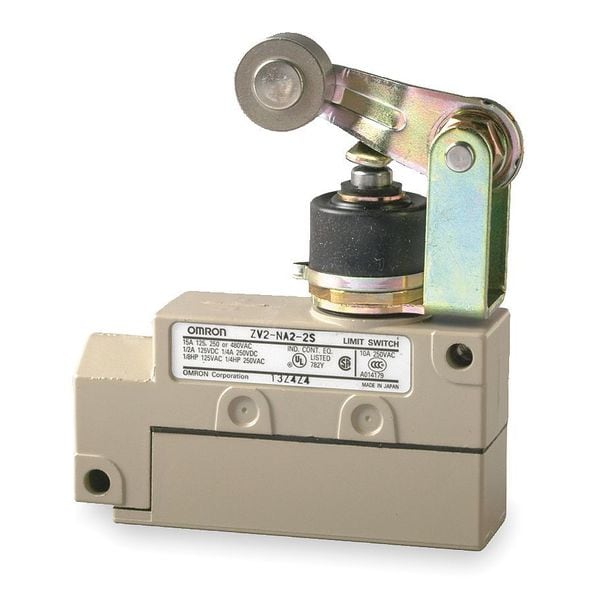

Limit Switch, Plunger, Roller Lever, SPDT, 10A at 480V AC, Actuator Location: Top

  • Mfr # ZV2NA22S

  • Zoro # G2798494

product price:
$
102.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller Lever
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 480V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZV2NA22S
Zoro #
G2798494
UPC #
-
Country of Origin
Japan

Dimensions

Body Depth - Limit Switch
1.0 in
Roller Dia.
0.75 in
Actuator Length
1.56"
Actuator Length - Limit Switch
1.56 in
Height
4.02"
Roller Width
0.31 in
Body Height - Limit Switch
1.3 in
Body Width - Limit Switch
3.39 in
Depth
3.39"
Width
1.00"
Body Height
1.3 in
Body Width
3.39 in
Mounting Hole Diameter
0.2 in
Manufacturer Warranty Length
1 yr
Arm Length - Maximum
1.56 in
Overall Depth
1 in
Roller Diameter
0.75 in
Body Depth
1 in
Overall Width
3.39 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller Lever
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 480V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Micro
Mounting - Limit Switch
Bottom Flange
Wiring Entry
G1/2
Series
ZV2
DC Contact Rating
0.03 A @ 250 V (Inductive Load), 0.05 A @ 125 V (Inductive Load), 0.25 A @ 250 V (Resistive Load), 0.5 A @ 125 V (Resistive Load)
Standards
CCC, CSA, UL Listed
Body Style (Limit Switch)
Micro
Limit Switch Style
General Purpose Limit Switch
Contact Form
SPDT
IP Rating
IP65
Actuator Style
Roller Lever Plunger
Actuator Location
Top
Actuator Style (Limit Switch)
Plunger, Roller Lever
Electrical Connection
Screw Terminals
Boot Sealed Actuator (Limit Switch)
Yes
Travel
Maximum Pre-Travel 5mm, Minimum Over-Travel 6mm
Body Material
Aluminum
Movement
Top
AC Contact Rating
15 A @ 250 V
Voltage Rating
480VAC
Mounting Hole - Limit Switch
(2) 0.17 in dia
Amps
15/15/10
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Boot Sealed Actuator - Limit Switch
Yes
Mounting Hole Spacing - Limit Switch
1.63 in
Operating Temp. Range
14 Degrees to 176 Degrees F
NEMA Rating
1, 2, 3, 4, 5
Operating Force
6.3 N-m
Contact Form - Limit Switch
SPDT
Actuator Location (Limit Switch)
Top
Stem Thread - Limit Switch
No Stem
Basic Actuator Style (Limit Switch)
Plunger
Number of Poles
1
Arm Material
Steel
Differential Travel
0.02 in
Roller Material
Stainless Steel
Body Configuration
Non Plug-In
Mounting Hole Vertical Center to Center Distance
41 mm
Operating Temperature - Minimum
14 Degrees F
Roller Position
Top
Operating Temperature - Maximum
176 Degrees F
Roller Adjustability
Fixed
Pretravel
0.197 in
Lamp Type
No Lamp Module Included
NEMA Enclosure Rating
1, 2, 3, 4, 5
Boot Sealed Actuator
Boot Included
Mounting Style
Diagonal Side
Directional Movement
CCW/CW
Overtravel
0.24 in
Plunger Adjustability
Fixed
Mounting Hole Horizontal Center to Center Distance
41 mm
Total Travel
.45 in
Operating Force - Maximum
6.28 N
Arm Adjustability
Adjustable
Action
Momentary
Includes Actuator
Actuator Included
Number of Mounting Holes
2

Description

Roller Lever Plunger Limit Switch, Actuator Style - Limit Switch Plunger, Roller Lever, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 480V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches SPDT, Actuator Length - Limit Switch 1.56 in, Body Height - Limit Switch 1.3 in, Body Width - Limit Switch 3.39 in, Body Depth - Limit Switch 1 in, Boot Sealed Actuator - Limit Switch Yes, Body Style - Limit Switch Micro, NEMA Rating 1, 2, 3, 4, 5
