Shop OMRON

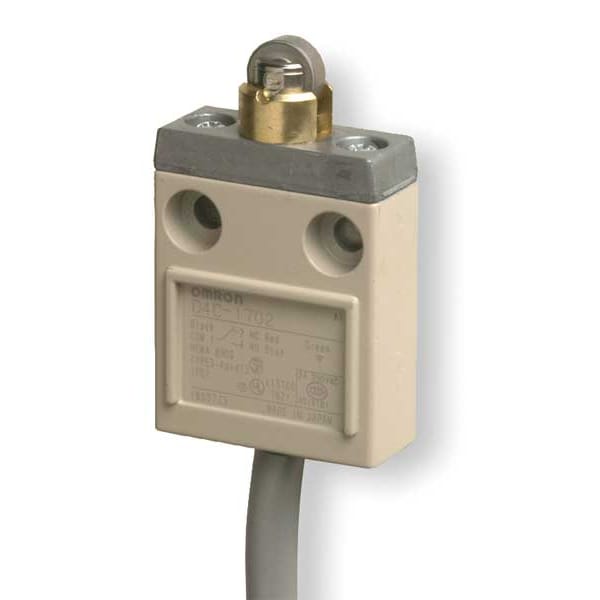

Limit Switch, Plunger, Roller, SPDT, 5A at 240V AC, Actuator Location: Top

  • Mfr # D4C1702

  • Zoro # G1838033

product price:  $182.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 240V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D4C1702
Zoro #
G1838033
UPC #
-
Country of Origin
Japan

Dimensions

Depth
0.63"
Body Height - Limit Switch
2.13 in
Body Width - Limit Switch
1.33 in
Width
1.57"
Height
2.64"
Roller Width
0.17 in
Roller Dia.
0.47 in
Body Depth - Limit Switch
0.63 in
Mounting Hole Diameter
0.2 in
Body Height
2.13 in
Body Width
1.33 in
Body Depth
0.62 in
Roller Diameter
0.47 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 240V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Standards
CCC, CE, CSA, EN, UL Listed
Stem Thread - Limit Switch
No Stem
NEMA Rating
13, 3, 4
Body Material
Aluminum
AC Contact Rating
5 A @ 250 V
DC Contact Rating
4 A @ 30 V
Electrical Connection
Pre-Wired Cable
Actuator Style
Roller Plunger
Series
D4C
Actuator Location (Limit Switch)
Top
Limit Switch Style
General Purpose Limit Switch
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Boot Sealed Actuator - Limit Switch
No
Mounting Hole - Limit Switch
(2) 0.20 in dia
Operating Force
11.8 N-m
Number of Poles
1
Travel
Maximum Pre-Travel 1.8mm, Minimum Over-Travel 3mm
Contact Form - Limit Switch
SPDT
Voltage Rating
240VAC
Wiring Entry
5m Cable
Roller Material
Stainless Steel
Operating Temp. Range
-14 Degrees to 158 Degrees F
Amps
5
Contact Form
SPDT
Basic Actuator Style (Limit Switch)
Plunger
Boot Sealed Actuator (Limit Switch)
No
IP Rating
IP67
Actuator Location
Top
Movement
Top
Body Style (Limit Switch)
Miniature
Mounting Hole Spacing - Limit Switch
0.98 in
Actuator Style (Limit Switch)
Plunger, Roller
Differential Travel
0.01 in
Operating Force - Maximum
11.77 N
Plunger Adjustability
Fixed
Boot Sealed Actuator
No Boot Included
Overtravel
0.12 in
Mounting Style
Surface
Total Travel
0.19 in
Pretravel
0.07 in
Number of Mounting Holes
2
Operating Torque - Maximum
104.44 in-lb
Action
Momentary
Roller Position
Top
Operating Temperature - Maximum
158 Degrees F
Mounting Hole Horizontal Center to Center Distance
25 mm
Roller Adjustability
Fixed
Lamp Type
LED
Operating Torque - Minimum
2.92 in-lb
NEMA Enclosure Rating
13, 3, 4
Directional Movement
Linear
Includes Actuator
Actuator Included
Operating Temperature - Minimum
14 Degrees F
Body Configuration
Plug-In
Mounting Hole Vertical Center to Center Distance
25 mm

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 5A @ 240V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches SPDT, Body Height - Limit Switch 2.13 in, Body Width - Limit Switch 1.33 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 13, 3, 4, Mounting - Limit Switch Surface, Electrical Connection Pre-Wired Cable
