Shop OMRON

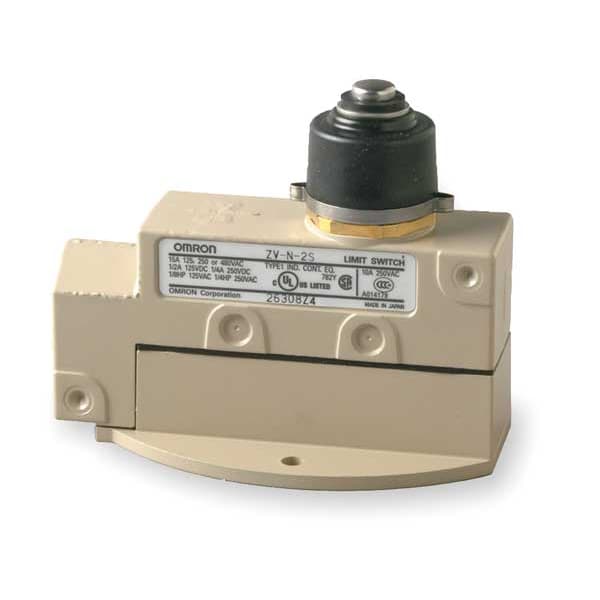

Limit Switch, Plunger, SPDT, 10A at 480V AC, Actuator Location: Top

  • Mfr # ZVN2S

  • Zoro # G1099253

product price:  $77.39
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 480V
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
ZVN2S
Zoro #
G1099253
UPC #
-
Country of Origin
Japan

Dimensions

Body Depth - Limit Switch
1.0 in
Width
2.13"
Body Width - Limit Switch
3.39 in
Body Height - Limit Switch
1.3 in
Height
2.81"
Depth
3.39"
Actuator Length
0.08 in
Roller Width
0.75 in
Overall Width
3.39 in
Overall Depth
1 in
Body Height
1.3 in
Body Depth
1 in
Body Width
3.39 in
Manufacturer Warranty Length
1 yr
Mounting Hole Diameter
0.2 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 480V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Micro
Mounting - Limit Switch
Bottom Flange
Mounting Hole Spacing - Limit Switch
1.63 in
Number of Poles
1
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Limit Switch Style
General Purpose Limit Switch
Electrical Connection
Screw Terminals
Stem Thread - Limit Switch
No Stem
IP Rating
IP65
Boot Sealed Actuator - Limit Switch
Yes
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
Body Material
Aluminum
Standards
CCC, CSA, UL Listed
Contact Form
SPDT
Series
ZV
Amps
15/15/10
Actuator Style
Plunger
Contact Form - Limit Switch
SPDT
Basic Actuator Style (Limit Switch)
Plunger
Mounting Hole - Limit Switch
(2) 0.17 in dia
Actuator Location (Limit Switch)
Top
Actuator Location
Top
NEMA Rating
1, 2, 3, 4, 5
Boot Sealed Actuator (Limit Switch)
Yes
Voltage Rating
480VAC
Actuator Style (Limit Switch)
Plunger
AC Contact Rating
15 A @ 250 V
DC Contact Rating
0.03 A @ 250 V (Inductive Load), 0.05 A @ 125 V (Inductive Load), 0.25 A @ 250 V (Resistive Load), 0.5 A @ 125 V (Resistive Load)
Wiring Entry
G1/2
Body Style (Limit Switch)
Micro
Movement
Top
Operating Force
7.9 N-m
Operating Temp. Range
14 Degrees to 176 Degrees F
Roller Material
Stainless Steel
Arm Material
Stainless Steel
Differential Travel
0.02 in
Roller Adjustability
Fixed
Body Configuration
Non Plug-In
Plunger Adjustability
Fixed
Lamp Type
No Lamp Module Included
Pretravel
0.08 in
Mounting Style
Flanged Base
NEMA Enclosure Rating
1, 2, 3, 4, 5
Action
Momentary
Boot Sealed Actuator
Boot Included
Roller Position
Top
Operating Force - Maximum
7.85 N
Number of Mounting Holes
2
Includes Actuator
Actuator Included
Mounting Hole Vertical Center to Center Distance
41 mm
Operating Temperature - Minimum
14 Degrees F
Operating Temperature - Maximum
176 Degrees F
Total Travel
.28 in
Mounting Hole Horizontal Center to Center Distance
41 mm
Overtravel
0.2 in
Directional Movement
Linear

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 480V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches SPDT, Body Height - Limit Switch 1.3 in, Body Width - Limit Switch 3.39 in, Body Depth - Limit Switch 1 in, Boot Sealed Actuator - Limit Switch Yes, Body Style - Limit Switch Micro, NEMA Rating 1, 2, 3, 4, 5, Mounting - Limit Switch Bottom Flange, Electrical Connection Screw Terminal
