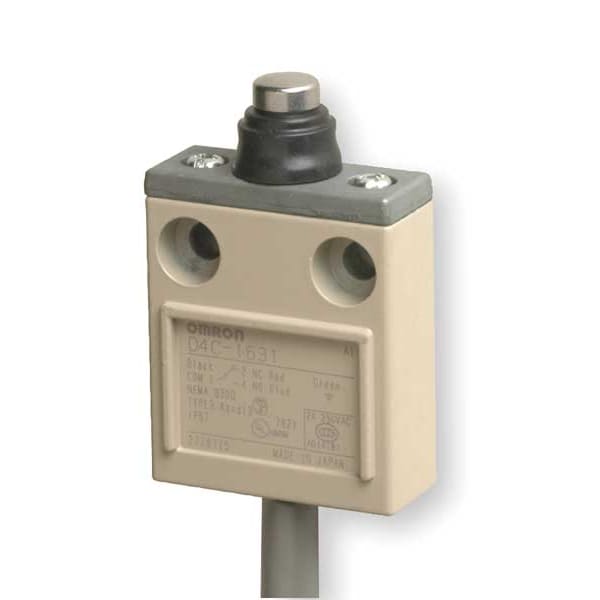

Limit Switch, Plunger, SPDT, 5A at 240V AC, Actuator Location: Top

  • Mfr # D4C1631

  • Zoro # G0287122

product price:
$
142.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 240V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
D4C1631
Zoro #
G0287122
UPC #
-
Country of Origin
Japan
Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 240V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Body Material
Aluminum
Travel
Maximum Pre-Travel 1.8mm, Minimum Over-Travel 3mm
Electrical Connection
Pre-Wired Cable
Movement
Top
Actuator Style
Plunger
Wiring Entry
3m Cable
AC Contact Rating
5 A @ 250 V
Mounting Hole - Limit Switch
(2) 0.20 in dia
DC Contact Rating
4 A @ 30 V
Contact Form - Limit Switch
SPDT
Series
D4C
NEMA Rating
13, 3, 4
Voltage Rating
240VAC
Body Style (Limit Switch)
Miniature
Basic Actuator Style (Limit Switch)
Plunger
Boot Sealed Actuator - Limit Switch
Yes
Mounting Hole Spacing - Limit Switch
0.98 in
Limit Switch Style
General Purpose Limit Switch
Operating Force
17.7 N-m
Contact Form
SPDT
Actuator Location (Limit Switch)
Top
Amps
5
Actuator Style (Limit Switch)
Plunger
Number of Poles
1
Operating Temp. Range
-14 Degrees to 158 Degrees F
IP Rating
IP67
Boot Sealed Actuator (Limit Switch)
Yes
Actuator Location
Top
Standards
CCC, CE, CSA, EN, UL Listed
Stem Thread - Limit Switch
No Stem
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Roller Material
Stainless Steel
Differential Travel
0.01 in
NEMA Enclosure Rating
13, 3, 4
Operating Torque - Maximum
156.22 in-lb
Body Configuration
Plug-In
Plunger Adjustability
Fixed
Includes Actuator
Actuator Included
Boot Sealed Actuator
Boot Included
Lamp Type
LED
Operating Force - Maximum
17.65 N
Mounting Hole Horizontal Center to Center Distance
25 mm
Operating Temperature - Maximum
158 Degrees F
Directional Movement
Linear
Total Travel
0.19 in
Roller Position
Top
Operating Temperature - Minimum
14 Degrees F
Pretravel
0.07 in
Mounting Hole Vertical Center to Center Distance
25 mm
Operating Torque - Minimum
3.89 in-lb
Action
Momentary
Roller Adjustability
Fixed
Overtravel
0.12 in
Mounting Style
Surface
Number of Mounting Holes
2

Description

Plunger Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 5A @ 240V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches SPDT, Body Height - Limit Switch 2.13 in, Body Width - Limit Switch 1.33 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch Yes, Body Style - Limit Switch Miniature, NEMA Rating 13, 3, 4, Mounting - Limit Switch Surface, Electrical Connection 9.8 ft Cable (SJT(O))
