Shop OMRON

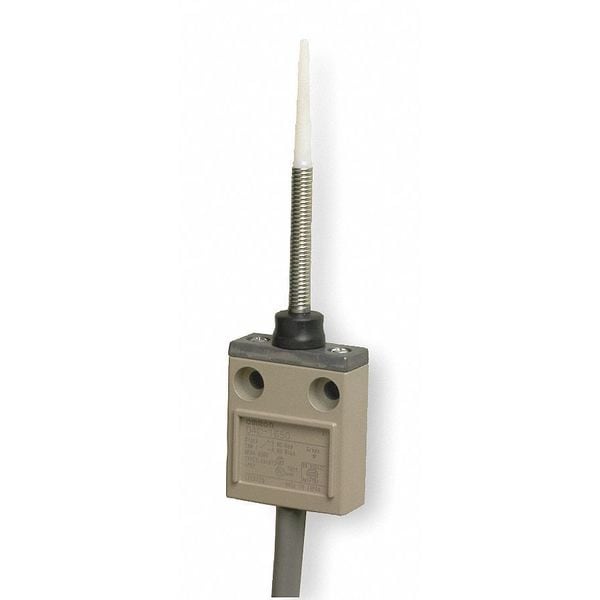

Limit Switch, Wobble Stick, SPDT, 5A at 240V AC, Actuator Location: Top

  • Mfr # D4C1650

  • Zoro # G1481697

product price:  $120.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 240V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D4C1650
Zoro #
G1481697
UPC #
-
Country of Origin
Japan

Dimensions

Actuator Length
3.15"
Body Width - Limit Switch
1.33 in
Width
1.57"
Body Height - Limit Switch
2.13 in
Depth
0.63"
Body Depth - Limit Switch
0.63 in
Height
4.09"
Actuator Length - Limit Switch
3.15 in
Roller Width
0.3 in
Roller Diameter
0.29 in
Body Depth
0.62 in
Arm Length - Maximum
3.15 in
Body Width
1.57 in
Manufacturer Warranty Length
1 yr
Overall Depth
0.74 in
Mounting Hole Diameter
0.2 in
Body Height
1.92 in
Overall Width
1.57 in
Overall Height
6.02 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 240V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Stem Thread - Limit Switch
No Stem
Series
D4C
Boot Sealed Actuator (Limit Switch)
No
DC Contact Rating
4 A @ 30 V
Number of Poles
1
Amps
5
Boot Sealed Actuator - Limit Switch
No
Operating Force
1.5 N-m
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Electrical Connection
Pre-Wired Cable
Actuator Location (Limit Switch)
Top
AC Contact Rating
5 A @ 250 V
Body Material
Aluminum
Actuator Location
Top
Body Style (Limit Switch)
Miniature
Movement
Top
Mounting Hole - Limit Switch
(2) 0.20 in dia
Travel
Maximum Pre-Travel 15 Degrees , Minimum Over-Travel N/A
Wiring Entry
3m Cable
Contact Form
SPDT
Contact Form - Limit Switch
SPDT
Actuator Style (Limit Switch)
Wobble Stick
Standards
CCC, CE, CSA, EN, UL Listed
Operating Temp. Range
-14 Degrees to 158 Degrees F
IP Rating
IP67
Limit Switch Style
General Purpose Limit Switch
Actuator Style
Rod
NEMA Rating
13, 3, 4
Basic Actuator Style (Limit Switch)
Wobble Stick
Voltage Rating
240VAC
Mounting Hole Spacing - Limit Switch
0.98 in
Arm Material
Plastic
Differential Travel
0.01 in
Directional Movement
Omnidirectional
Operating Temperature - Maximum
158 Degrees F
Action
Momentary
Arm Adjustability
Fixed
Roller Position
Top
NEMA Enclosure Rating
13, 3, 4
Roller Adjustability
Fixed
Operating Temperature - Minimum
14 Degrees F
Plunger Adjustability
Fixed
Mounting Style
Surface
Mounting Hole Vertical Center to Center Distance
25 mm
Body Configuration
Plug-In
Number of Mounting Holes
2
Boot Sealed Actuator
No Boot Included
Operating Force - Maximum
1.47 N
Includes Actuator
Actuator Included
Total Travel
15 Degrees
Mounting Hole Horizontal Center to Center Distance
25 mm
Pretravel
15 Degrees
Lamp Type
LED

Description

Limit Switch, Actuator Style - Limit Switch Wobble Stick, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 5A @ 240V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches SPDT, Actuator Length - Limit Switch 3.15 in, Body Height - Limit Switch 2.13 in, Body Width - Limit Switch 1.33 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 13, 3, 4, Mounting - Limit Switch Surface
