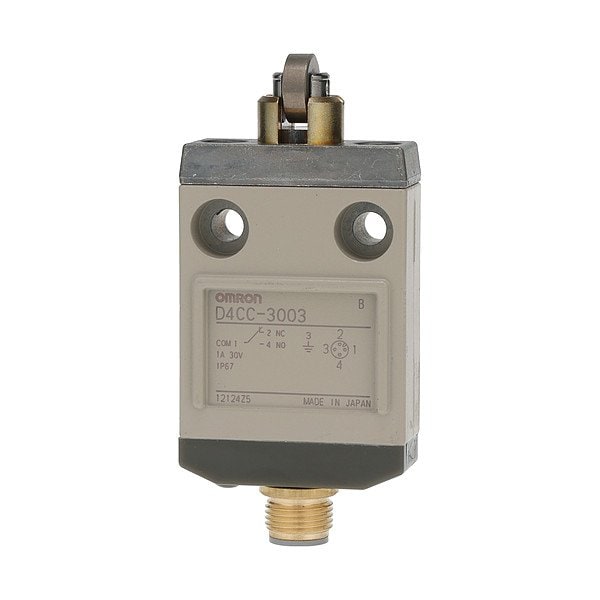

Limit Switches

  • Mfr # D4CC-3003
  • Zoro # G115892641
product price:
$
197.99
/ea
Free Shipping & Returns

Key Features

Arm Adjustability
Fixed
Mounting Hole Horizontal Center to Center Distance
25 mm
IP Rating
IP67
Operating Torque - Maximum
0.33 N-m
Lamp Type
No Lamp Module Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
D4CC-3003
Zoro #
G115892641
UPC #
4536853208424
Country of Origin
Japan
Item
Limit Switches
Arm Adjustability
Fixed
Mounting Hole Horizontal Center to Center Distance
25 mm
IP Rating
IP67
Operating Torque - Maximum
0.33 N-m
Lamp Type
No Lamp Module Included
Directional Movement
Linear
Operating Force - Maximum
11.77 N
Total Travel
4.8 mm
Pretravel
1.8 mm
Actuator Location
Top
Differential Travel
0.2 mm
Actuator Style
Cross Roller-Plunger
Contact Form
1NO/1NC
Roller Position
Top
DC Contact Rating
1 A @ 30 V
Electrical Connection
4-Pin M12 Male Connector
Plunger Adjustability
Fixed
Overtravel
3 mm
Roller Adjustability
Fixed
Body Configuration
Non Plug-In
Number of Mounting Holes
2
Action
Momentary
Boot Sealed Actuator
No Boot Included
Includes Actuator
Actuator Included
Body Material
Aluminum
AC Contact Rating
1 A @ 125 V
Mounting Style
Surface
Pre-Travel - Linear
1.8 mm
NEMA Enclosure Rating
13, 3, 4
Over Travel - Linear
3 mm
Operating Force - Minimum
4.41 N
Differential Travel - Linear
0.2 mm
Total Travel - Linear
4.8 mm
Series
D4CC
Switch Structure
SPDT

Dimensions

Mounting Hole Diameter
5.21 mm
Arm Width
0.17 in

Description

Limit Switch, Electrical Connection 4-Pin M12 Male Connector, IP Rating IP67
