Shop OMRON

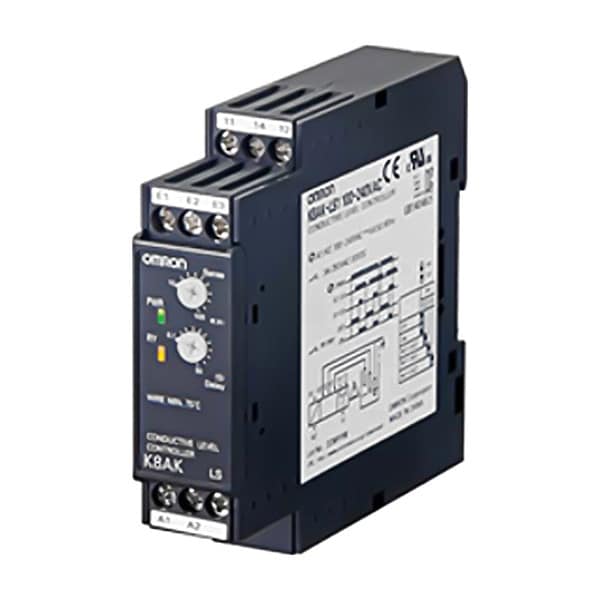

LvlContrlRelay, SingleProbe, 5A, PumpUp/Dwn

  • Mfr # K8AK-LS1 24VAC/DC

  • Zoro # G608563867

product price:  $231.99
/ea
Free Shipping & Returns

Key Features

For Use With
Liquid Level Control Equipment
Includes
PC and ABS (UL 94 V-0)
Features
Applicable as a Floatless Switch, Prevents Relay Chattering, Self-holding Circuit, Adjustable Sensitivity
Standards
CSA C22.2 No.14, CCC GB/T 14048.5, EN 61010-1, EN 61326-1 Industrial Electromagnetic Environment, UL 508 (Recognition), Korean Radio Waves Act (Act 10564)
Contact Form
SPDT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K8AK-LS1 24VAC/DC
Zoro #
G608563867
UPC #
4548583402508
Country of Origin
China

Dimensions

Flat Pin Width
0.2 in
Overall Depth
3.94 in
Body Depth
3.94 in
Body Width
0.89 in
Body Height
3.54 in

Details

Item
Level Control Relay
For Use With
Liquid Level Control Equipment
Includes
PC and ABS (UL 94 V-0)
Features
Applicable as a Floatless Switch, Prevents Relay Chattering, Self-holding Circuit, Adjustable Sensitivity
Standards
CSA C22.2 No.14, CCC GB/T 14048.5, EN 61010-1, EN 61326-1 Industrial Electromagnetic Environment, UL 508 (Recognition), Korean Radio Waves Act (Act 10564)
Contact Form
SPDT
Input Voltage
24V AC/DC
Status Indicator
LED Indicator
Minimum Resistance Sensitivity
10,000 ohm
Contact Rating (DC)
5 A @ 30V DC
Mechanical Operating Durability
10,000,000
Mounting Style
DIN Rail
Adjustment Method
Dip Switch
Electrical Operating Durability
100,000
Coil Voltage
24V AC/DC
Base Shape
Square
Maximum Resistance Sensitivity
100,000 ohm
Weight
5.29 oz
Maximum Switching Capacity
1,250 VA
Contact Rating (AC)
5 A @ 250V AC
Number of Probes
Single Probe
Relay Function
Pump Down, Pump Up
Current Rating
5 A
Number of Pins
2
Minimum Operating Temperature
-4 Degrees F
Dielectric Strength
2,000V AC between External Terminals and Case, 2,000V AC between Input and Output Terminals, 2,000V AC between Power Supply and Input Terminals, 2,000V AC between Power Supply and Output Terminals
Maximum Operating Temperature
140 Degrees F
Frequency
50/60 Hz
Response Time
10 sec
Electrical Connection
Screw Terminal
Power Consumption
1.1 W, 2 VA

Description

Level Control Relay, Base Shape Square, Contact Form SPDT, Current Rating 5 A, Electrical Connection Screw Terminal, Flat Pin Width 0.2 in, Input Voltage 24V AC/DC, Minimum Resistance Sensitivity 10,000 ohm, Maximum Resistance Sensitivity 100,000 ohm, Number of Pins 2, Number of Probes Single Probe, Relay Function Pump Down, Pump Up, Contact Rating (AC) 5 A @ 250V AC, Contact Rating (DC) 5 A @ 30V DC, Mounting Style DIN Rail, Status Indicator LED Indicator, Adjustment Method Dip Switch

Restrictions

This item has been restricted from sale in the following states: CA
