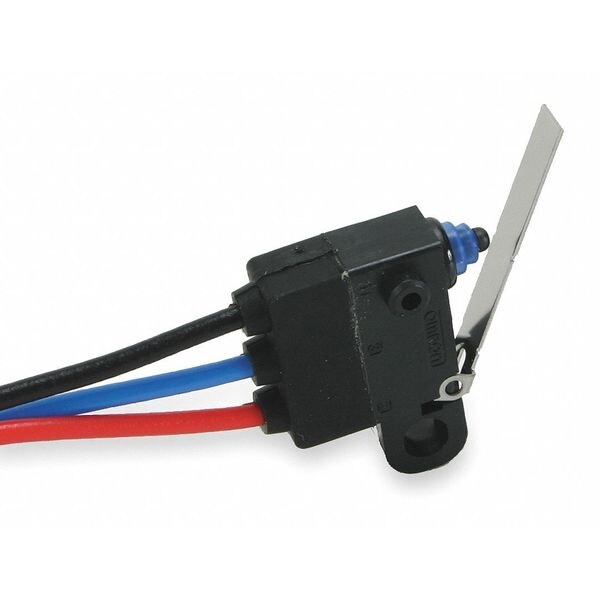

Omron Miniature Sealed Snap Action Switch, Hinge, Lever Actuator, SPDT D2HW-C221M

Miniature Sealed Snap Action Switch, Hinge, Lever Actuator, SPDT (Discontinued)

  • Mfr # D2HW-C221M
  • Zoro # G0546122
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
D2HW-C221M
Zoro #
G0546122
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
0.79 in
Height - Snap Action Switch
0.28 in
Width - Snap Action Switch
0.73 in
Depth - Snap Action Switch
0.33 in
Mounting Dimension - Snap Action Switch
0.51 in Centers
Actuator Length
0.79"
Height
0.28"
Length
0.73"
Depth
0.33"
Mounting Dimension
0.51" Centers

Details

Item
Sealed Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever
DC Contact Rating - Snap Action Switch
2A @ 12V
Contact Form- Switches
SPDT
Watertight - Snap Action Switch
Yes
Current Rating
2A
Terminal Type
Lead Wires
Operating Temp. Range
-40 Degrees to 185 Degrees F
Electrical Connection - Snap Action Switch
Lead Wires
Type of Actuator
Long Hinge Lever
Release Force
0.11 oz
Contact Form
SPDT
Voltage Rating
12VDC
Differential Travel
0.032 in
Series
D2HW
Over Travel
0.366 in
Operating Force
1.77 oz
Housing Material
Phenolic
DC Contact Rating
2 A @ 12 V
Differential Travel - Maximum
0.032 in
Actuator Style
Hinge Lever
Overtravel
0.366 in
Electrical Connection
Lead Wires

Description

Sealed Snap Action Switch, Hinge, Lever, DC Contact Rating - Snap Action Switch 2A @ 12V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 0.79 in, Height - Snap Action Switch 0.28 in, Width - Snap Action Switch 0.73 in, Depth - Snap Action Switch 0.33 in, Electrical Connection - Snap Action Switch Lead Wires, Mounting Dimension - Snap Action Switch 0.51 in Centers, Series D2HW
