This item is Discontinued.

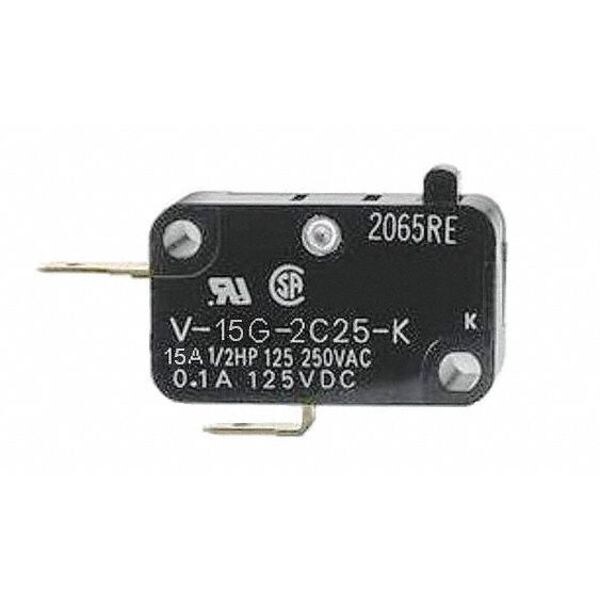

Omron Miniature Snap Action Switch, Pin, Plunger Actuator, 1NC, 15A @ 240V AC Contact Rating V-15G-2C25-K

Miniature Snap Action Switch, Pin, Plunger Actuator, 1NC, 15A @ 240V AC Contact Rating (Discontinued)

Mfr # V-15G-2C25-K
Zoro # G0488914

Get a 10% off coupon

Free 30-day returns Return Policy

Get 30 days to pay with Net 30 Apply Now

Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #

V-15G-2C25-K

Zoro #

G0488914

UPC #

Country of Origin

Japan

Dimensions

Mounting Dimension - Snap Action Switch

0.87 in Centers

Mounting Dimension

0.41 x 0.87" Centers

Details

Item

Miniature Snap Action Switch

Actuator Type - Snap Action Switch

Pin, Plunger

AC Contact Rating - Snap Action Switch

15A @ 240V

Contact Form- Switches

1NC

Max. Pretravel

0.047 in

Terminal Type

Quick Connect

Watertight - Snap Action Switch

Differential Travel

0.012 in

Operating Temp. Range

-13 Degrees to 176 Degrees F

Release Force

1.77 oz

Over Travel

0.050 in

Electrical Connection - Snap Action Switch

Quick Connect

Operating Force

7.06 oz

Type of Actuator

Pin Plunger

Contact Form

1NC

Housing Material

Phenolic

Current Rating

15A

AC Contact Rating

15 A @ 240 V

Overtravel

0.05 in

Pretravel

0.047 in

Differential Travel - Maximum

0.012 in

Actuator Style

Pin Plunger

Electrical Connection

Quick Connect

Description

Miniature Snap Action Switch, Pin, Plunger, AC Contact Rating - Snap Action Switch 15A @ 240V, Contact Form- Switches 1NC, Electrical Connection - Snap Action Switch Quick Connect, Mounting Dimension - Snap Action Switch 0.87 in Centers
