This item is Discontinued.

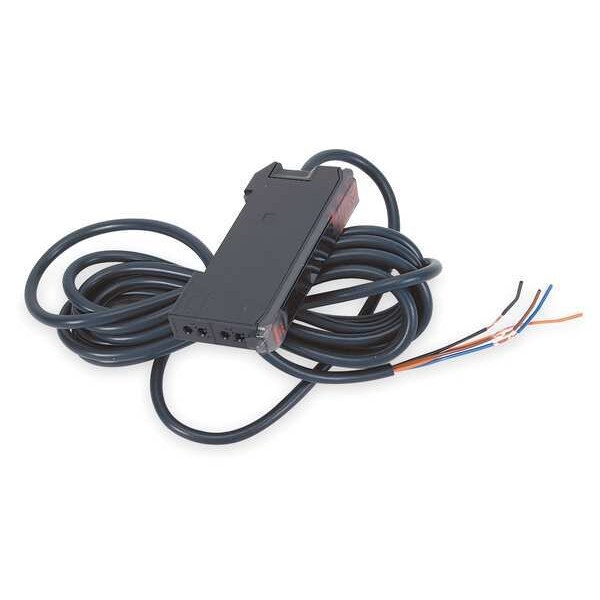

Omron Photoelectric Sensor, Rectangular, NPN E3X-MDA11

Photoelectric Sensor, Rectangular, NPN (Discontinued)

  • Mfr # E3X-MDA11
  • Zoro # G3091207
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E3X-MDA11
Zoro #
G3091207
UPC #
-
Country of Origin
China

Dimensions

Width
0.39"
Depth
2.75"
Height - Rectangular Photoelectric Sensor
32 mm
Depth - Rectangular Photoelectric Sensor
70 mm
Width - Rectangular Photoelectric Sensor
10 mm
Length
1.26"
Cable Length
2 m
Overall Height
32 mm
Overall Width
10 mm
Overall Depth
70 mm

Details

Item
Photoelectric Sensor
Circuit Type
NPN
IP Rating
IP50
Power Requirement - Rectangular Photoelectric Sensor
12 to 24V DC
Output Circuit Type - Rectangular Photoelectric Sensor
NPN
Operating Mode - Photoelectric Sensor
Selectable Light On/Dark On
Max. Sensing Distance - Rectangular Photoelectric Sensor
Dependent on Fiber Cable Attached
Max. Load Current
50 mA
Electrical Connection - Rectangular Photoelectric Sensor
2m Cable
Electrical Connection
2m Cable
Operating Temp. Range
-25 Degrees to 55 Degrees C
Features
Output Reverse Polarity Protection, Output Short-Cut Protection, Surge Suppressor
Shape
Rectangular
Body Material
PBT
Operation Mode
Selectable Light On/Dark On
Response Time
0.1 msec
Power Requirement
12 to 24VDC
Light Source
Red LED
Style
Rectangular
Product Type
Photoelectric Sensor
Output Circuit Type
NPN
Load Current - Maximum
50 mA
Electrical Installation Type
Prewired Cable
Operating Mode
Selectable Light On/Dark On

Description

Photoelectric Sensor, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On
