Shop OMRON

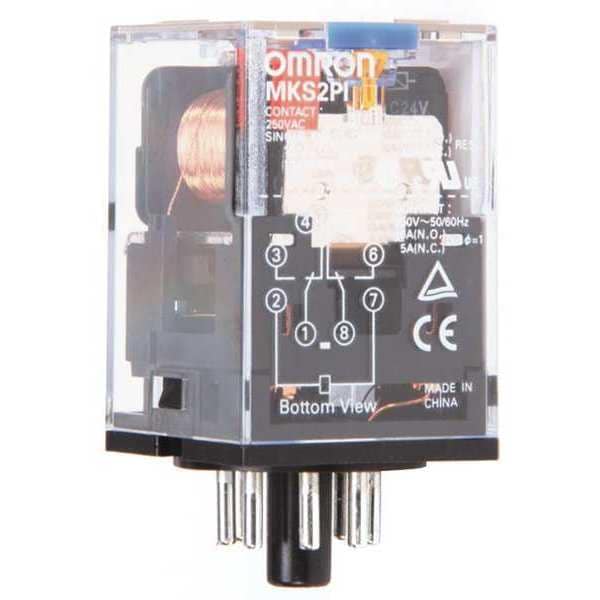

Plug-In, General Purpose Relay, Octal, 10 A, 8 Pins, Plug-in

  • Mfr # MKS2PIDC24
  • Zoro # G2072217
CAD Available
product price:
$
18.59
/ea

Key Features

CAD Drawing
Mounting Style
Plug-In
Electrical Connection
Plug-In
Base Shape
Octal
Number of Pins
8
Coil Voltage
24V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MKS2PIDC24
Zoro #
G2072217
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
2.5 in
Overall Depth
2.5 in
Body Depth
2.07 in
Body Width
1.36 in
Body Height
1.36 in
Fits Chest Size
Diode Surge Supression, Varistor Surge Suppression

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Plug-In
Base Shape
Octal
Number of Pins
8
Coil Voltage
24V DC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 250V (NO), 5 A @ 250V (NC), 7 A @ 250V (NO)
Contact Rating (DC)
10 A @ 30V (NO), 5 A @ 30V (NC)
Status Indicator
Mechanical Flag
Standards
RoHS Compliant, UL and IEC (TUV) Certified
Power Consumption - Relay
1.4 W
HP @ 120V
Not Rated
Green Environmental Attribute
RoHS 2011/65/EU Compliant
HP @ 240V
Not Rated
Socket Code
A
Socket
Mfr. No. PF083A-E
Contact Material
Silver Tin Indium
Features
Diode Surge Supression, Varistor Surge Suppression
Power Consumption
1.4 W
Input Voltage
24V DC
Horsepower @ 240V AC
Not Rated
Electrical Operating Durability
100,000
Sealing
Enclosed
Frequency
50/60 Hz
Mechanical Operating Durability
5,000,000
Motor Rated
Not Rated - Not Rated
Weight
3.17 oz
Operating Current
10 A at 250V AC (Resistive Load), 10 A at 30V DC (Resistive Load), 5 A at 250V AC (Resistive Load), 5 A at 30V DC (Resistive Load), 7 A at 250V AC (Inductive Load)
Insulation Resistance
100 megaohm
Resistance Properties
Shock-Resistant, Vibration-Resistant
Horsepower @ 120V AC
Not Rated
Minimum Operating Temperature
-40 Degrees F
Compatible with Manufacturer Model Number
PF083A, PF083A-D, PF083A-E
Push-To-Test Method
Lockable
Pin Shape
Round
Response Time
30 msec
Maximum Switching Voltage
250V AC, 250V DC
Coil Resistance
430 ohm
Series
MK-S Series
Dielectric Strength
1,000V AC Between Contacts of Same Polarity and Terminals of the Same Polarity, 2,500V AC between Coil and Contacts, 2,500V AC Between Current-Carrying Parts Non-Current-Carrying Parts and Opposite Polarity
Maximum Operating Temperature
140 Degrees F
Compatible Manufacturer Part Number
PF083A, PF083A-D, PF083A-E
Compatible Manufacturer Model Number
PF083A, PF083A-D, PF083A-E
CAD Available
Yes
For Manufacturer Part Number
PF083A, PF083A-D, PF083A-E
Compatible with Mfr. Model Number
PF083A, PF083A-D, PF083A-E

Description

General Purpose Relay, Base Shape Octal, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Plug-In, Flat Pin Width Not Applicable, Number of Pins 8, Pin Shape Round, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 250V (NO), 5 A @ 250V (NC), 7 A @ 250V (NO), Contact Rating (DC) 10 A @ 30V (NO), 5 A @ 30V (NC), Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Lockable
