Shop OMRON

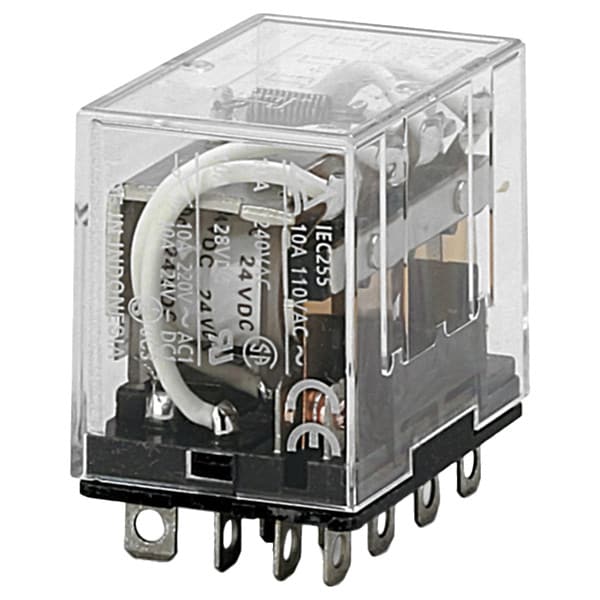

Plug-In, General Purpose Relay, Square, 30 mA, 14 Pins, Plug-in

  • Mfr # LY4-DC48

  • Zoro # G410080125

product price:
$
31.99
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Plug-In
Base Shape
Square
Number of Pins
14
Coil Voltage
48V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LY4-DC48
Zoro #
G410080125
UPC #
4536853621162
Country of Origin
Indonesia
Item
General Purpose Relays
Mounting Style
Plug-In
Electrical Connection
Plug-In
Base Shape
Square
Number of Pins
14
Coil Voltage
48V DC
Current Rating
30 mA
Contact Form
4PDT
Contact Rating (AC)
10 A @ 120V, 7.5 A @ 120V
Contact Rating (DC)
10 A @ 24V, 5 A @ 24V
Standards
RoHS
Contact Material
Silver Alloy
Features
The LY Series is Equipped with Arc Barrier and Built-in Diode
Status Indicator
No Indicator
Series
LY
Insulation Resistance
100 megaohm
Response Time
25 msec
Dielectric Strength
1,000V AC, 50/60 Hz for 1 min Between Contacts of the Same Polarity, 2,000V AC, 50/60 Hz for 1 min Between Coil and Contacts, Between Contacts of Different Polarity
Power Consumption
0.53 W
Compatible with Manufacturer Model Number
PTF-14-PU-L, PTF14A, PTF14A-E, PTFZ-14-E
Maximum Operating Temperature
40 Degrees C
For Use With
Sockets
Electrical Operating Durability
200,000
Mechanical Operating Durability
50,000,000, 100,000,000
Resistance Properties
Insulation-Resistant, Shock-Resistant, Vibration-Resistant
Frequency
50/60 Hz
Weight
70 g
Minimum Switching Current
10 A
Horsepower @ 240V AC
1/2 hp
Maximum Switching Voltage
125V DC, 250V AC
Coil Resistance
1,600 ohm
Minimum Operating Temperature
-25 Degrees C
Compatible Manufacturer Part Number
PTF-14-PU-L, PTF14A, PTF14A-E, PTFZ-14-E
Compatible Manufacturer Model Number
PTF-14-PU-L, PTF14A, PTF14A-E, PTFZ-14-E
For Manufacturer Part Number
PTF-14-PU-L, PTF14A, PTF14A-E, PTFZ-14-E
Compatible with Mfr. Model Number
PTF-14-PU-L, PTF14A, PTF14A-E, PTFZ-14-E

Description

General Purpose Relays, Base Shape Square, Coil Voltage 48V DC, Contact Form 4PDT, Electrical Connection Plug-In, Flat Pin Width 5 mm, Number of Pins 14, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 120V, 7.5 A @ 120V, Contact Rating (DC) 10 A @ 24V, 5 A @ 24V, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Body Depth 1.41 in, Body Height 1.1 in, Body Width 1.63 in, Coil Resistance 1,600 ohm, Compatible with Manufacturer Model Number PTF-14-PU-L, PTF14A, PTF14A-E, PTFZ-14-E
