Shop OMRON

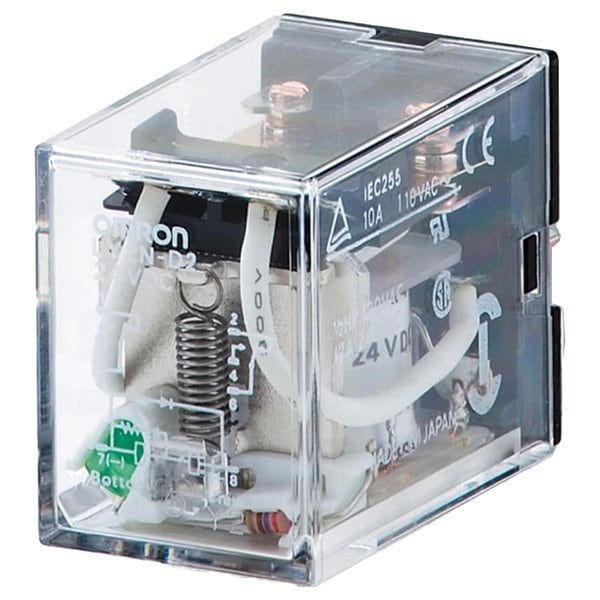

Plug-In, General Purpose Relay, Square, 5.8 mA, 6.8 mA, 8 Pins, Plug-in

  • Mfr # LY2N-AC200/220

  • Zoro # G910080137

product price:
$
32.99
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Plug-in
Base Shape
Square
Number of Pins
8
Coil Voltage
200/220V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LY2N-AC200/220
Zoro #
G910080137
UPC #
4536853612412
Country of Origin
Indonesia

Dimensions

Flat Pin Width
5 mm
Body Height
1.1 in
Overall Depth
1.66 in
Body Depth
1.41 in
Body Width
0.84 in

Details

Item
General Purpose Relays
Mounting Style
Plug-In
Electrical Connection
Plug-in
Base Shape
Square
Number of Pins
8
Coil Voltage
200/220V AC
Current Rating
5.8 mA, 6.8 mA
Contact Form
DPDT
Contact Rating (AC)
10 A @ 120V, 7.5 A @ 120V
Contact Rating (DC)
10 A @ 24V, 5 A @ 24V
Status Indicator
LED Indicator
Contact Material
Silver Alloy
Standards
RoHS
Features
The LY Series is Equipped with Arc Barrier and Built-in Diode
Electrical Operating Durability
200,000
Frequency
50/60 Hz
Insulation Resistance
100 megaohm
Response Time
25 msec
For Use With
Sockets
Maximum Operating Temperature
40 Degrees C
Mechanical Operating Durability
50,000,000, 100,000,000
Weight
50 g
Horsepower @ 240V AC
1/3 hp
Coil Resistance
12,950 ohm
Dielectric Strength
1,000V AC, 50/60 Hz for 1 min Between Contacts of the Same Polarity, 2,000V AC, 50/60 Hz for 1 min Between Coil and Contacts, Between Contacts of Different Polarity
Power Consumption
0.53 W
Resistance Properties
Insulation-Resistant, Shock-Resistant, Vibration-Resistant
Series
LY
Horsepower @ 120V AC
1/2 hp
Minimum Operating Temperature
-25 Degrees C
Maximum Switching Voltage
125V DC, 250V AC
Compatible with Manufacturer Model Number
PTF-08-PU, PTF-08-PU-L, PTF08A, PTF08A-E, PTFZ-08-E
Minimum Switching Current
10 A
Compatible Manufacturer Part Number
PTF-08-PU, PTF-08-PU-L, PTF08A, PTF08A-E, PTFZ-08-E
Compatible Manufacturer Model Number
PTF-08-PU, PTF-08-PU-L, PTF08A, PTF08A-E, PTFZ-08-E
For Manufacturer Part Number
PTF-08-PU, PTF-08-PU-L, PTF08A, PTF08A-E, PTFZ-08-E
Compatible with Mfr. Model Number
PTF-08-PU, PTF-08-PU-L, PTF08A, PTF08A-E, PTFZ-08-E

Description

General Purpose Relays, Base Shape Square, Coil Voltage 200/220V AC, Contact Form DPDT, Electrical Connection Plug-In, Flat Pin Width 5 mm, Number of Pins 8, Status Indicator LED Indicator, Contact Rating (AC) 10 A @ 120V, 7.5 A @ 120V, Contact Rating (DC) 10 A @ 24V, 5 A @ 24V, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1/3 hp, Mounting Style Plug-In, Body Depth 1.41 in, Body Height 1.1 in, Body Width 0.84 in, Coil Resistance 12,950 ohm
