This item is Discontinued.

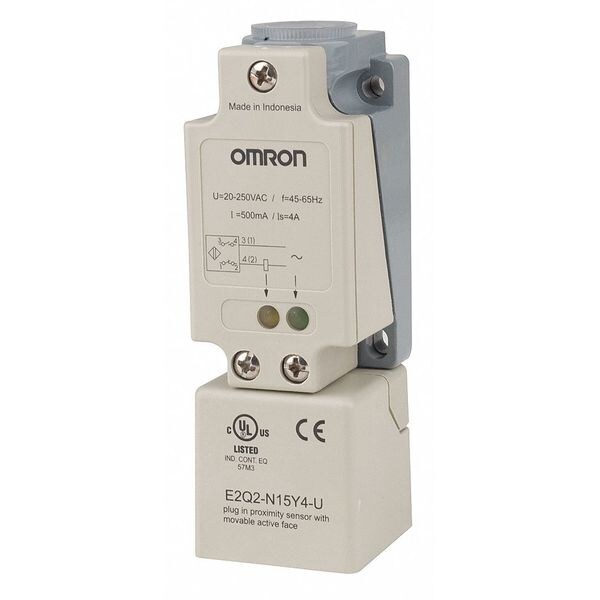

Omron Rectngulr Proximity Sensor, Indctiv, NO/NC E2Q2-N15Y4-U

Rectngulr Proximity Sensor, Indctiv, NO/NC (Discontinued)

  • Mfr # E2Q2-N15Y4-U
  • Zoro # G3284477
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
E2Q2-N15Y4-U
Zoro #
G3284477
UPC #
-
Country of Origin
Germany

Dimensions

Length
118mm
Width
40mm
Depth
40mm

Details

Item
Inductive Rectangular Proximity Sensor
Proximity Sensor Style
Rectangular Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC
Proximity Sensor Output Circuit Type
2 Wire
Output Mode
NO/NC
Max. Detecting Distance
15.0mm
Proximity Sensor Electrical Connection
Screw Clamp Terminal
Basic Proximity Sensor Case Material
Plastic
Shielded / Unshielded
Shielded
Proximity Sensor Operating Frequency
20 Hz
Case Material
PBT
Standards
CSA, UL Listed
IP Rating
IP67
Max. Current Load
500mA
Operating Temp. Range
-13 Degrees to 158 Degrees F
Description/Special Features
Yellow LED Operating Indicator
Electrical Connection
Bare Wire
Features
Yellow LED Indicator
Sensing Face Shielding
Shielded
Output Circuit Contact Form
NO/NC
Includes Indicator Lights
Indicator Lights Included
Output Circuit Number of Wires
2
Body Material
PBT
Sensing Method
Inductive
Style
Rectangular
Electrical Installation Type
Screw Clamp Terminal

Description

Inductive Rectangular Proximity Sensor, Inductive, Proximity Sensor Power Requirement 24 to 240V AC, Shielded, Proximity Sensor Operating Frequency 20 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 15.0mm, Proximity Sensor Electrical Connection Screw Clamp Terminal, Output Mode NO/NC, IP Rating IP67, Case Material PBT, Length 118mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 500mA, Description/Special Features Yellow LED Operating Indicator
