  6. Rectngulr Proxmity Sensor, Indctiv, 2 Wire

This item is Discontinued.

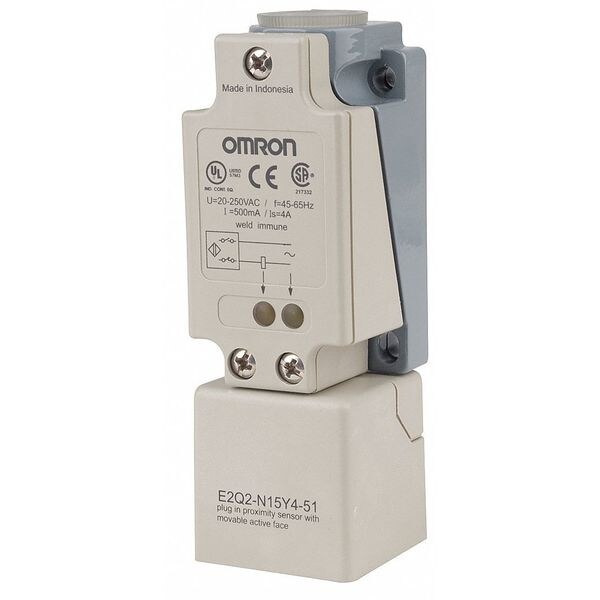

Omron Rectngulr Proxmity Sensor, Indctiv, 2 Wire E2Q2-N15Y4-51

Rectngulr Proxmity Sensor, Indctiv, 2 Wire (Discontinued)

  • Mfr # E2Q2-N15Y4-51
  • Zoro # G0731884
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E2Q2-N15Y4-51
Zoro #
G0731884
UPC #
-
Country of Origin
Germany

Dimensions

Length
118mm
Width
40mm
Depth
40mm
Length (Straight Wireway)
118mm

Details

Proximity Sensor Style
Rectangular Proximity Sensor
Item
Inductive Rectangular Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
90 to 140V AC
Proximity Sensor Output Circuit Type
2 Wire
Output Mode
NO/NC
Max. Detecting Distance
15.0mm
Proximity Sensor Electrical Connection
Screw Clamp Terminal
Shielded / Unshielded
Shielded
Basic Proximity Sensor Case Material
Plastic
Case Material
PBT
Proximity Sensor Operating Frequency
20 Hz
Standards
CSA, UL Listed
IP Rating
IP67
Operating Temp. Range
-13 Degrees to 158 Degrees F
Max. Current Load
500mA
Description/Special Features
Yellow LED Operating Indicator
Electrical Connection
Bare Wire
Output Circuit Number of Wires
2
Includes Indicator Lights
Indicator Lights Included
Style
Rectangular
Sensing Method
Inductive
Output Circuit Contact Form
NO/NC
Electrical Installation Type
Screw Clamp Terminal
Features
Yellow LED Indicator
Body Material
PBT
Sensing Face Shielding
Shielded

Description

Inductive Rectangular Proximity Sensor, Inductive, Proximity Sensor Power Requirement 90 to 140V AC, Shielded, Proximity Sensor Operating Frequency 20 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 15.0mm, Proximity Sensor Electrical Connection Screw Clamp Terminal, Output Mode NO/NC, IP Rating IP67, Case Material PBT, Length 118mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 500mA, Description/Special Features Yellow LED Operating Indicator
