  6. Relay, 14Pin, 4PDT, 5A, 120VAC

This item is Discontinued.

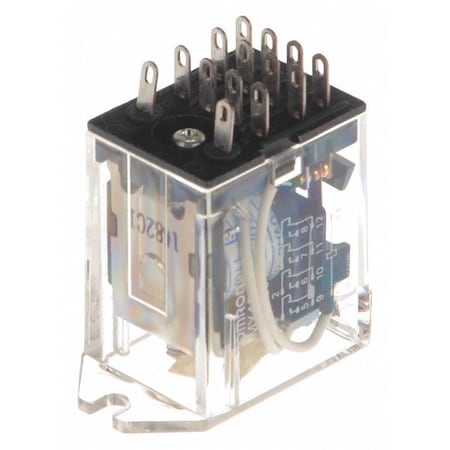

Omron Relay, 14Pin, 4PDT, 5A, 120VAC MY4F-AC110/120

Relay, 14Pin, 4PDT, 5A, 120VAC (Discontinued)

  • Mfr # MY4F-AC110/120
  • Zoro # G1166794
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
MY4F-AC110/120
Zoro #
G1166794
UPC #
-
Country of Origin
China

Dimensions

Body Width - Relay
0.89 in
Body Height - Relay
1.42 in
Body Depth - Relay
1.14 in
Overall Height - Relay
1.66 in
Overall Depth
1.66 in
Mounting Hole Diameter
1.2 in
Body Width
0.88 in
Body Height
1.73 in
Body Depth
1.41 in

Details

Item - Relay
Flange Mount Relay
Item
Flange Mount Relay
Coil Volts
120V AC
AC Contact Rating - Relay
3A @ 240V
DC Contact Rating - Relay
3A @ 24V
Number of Pins - Relay
14
Contact Form - Relay
4PDT
Mounting - Relay
Top Flange
Power Consumption - Relay
1.1 VA
Contact Material
Gold Clad Silver Alloy
Features
General Purpose Relays, Standard, Unsealed
Contact Form
4PDT
HP @ 120V
1/6 hp
Contact Rating
3A @ 220VAC/24VDC
HP @ 240V
1/6 hp
Standards
CE Certified, CSA Certified, TUV Certified, UL Listed
Electrical Connection
Plug-In Terminal
Status Indicator
None
Pins
14
Mounting
Top
Horsepower @ 120V AC
1/10 hp
Mechanical Operating Durability
50,000,000
Dielectric Strength
1,000V AC Between Contacts of Same Polarity, 2,000V AC Between Coil and Contact, 2,000V AC Between Contacts of Different Polarity
Electrical Operating Durability
200,000
Frequency
50/60 Hz
Relay Mounting Style
Surface (Top Flange)
Contact Rating (DC)
1.5 A @ 24V, 3 A @ 24V
Electrical Connection Type
Pin
Contact Rating (AC)
0.8 A @ 240V, 3 A @ 240V
Motor Rated
Yes
Coil Voltage Type
AC
Weight
1.23 oz
Base Shape
Square
Response Time
20 msec
Maximum Switching Capacity
1.3 VA
Number of Pins
14
Insulation Resistance
100 megaohm
Minimum Operating Temperature
-67 Degrees F
Environmental Protection
Enclosed
Coil Resistance
4,430 ohm
Sealing
Enclosed
Current Rating
3 A
Maximum Operating Temperature
158 Degrees F
Operating Current
0.8 A at 220V AC (Inductive Load), 1.5 A at 24V DC (Inductive Load), 3 A at 220V AC (Resistive Load), 3 A at 24V DC (Resistive Load)
Maximum Switching Voltage
125V AC/DC, 250V AC/DC
Coil Voltage
120V AC
Mounting Style
Top Flange
Power Consumption
0.9 VA, 1.3 VA
Socket Code Configurator
Surface (Top Flange) / Square / 14
Horsepower @ 240V AC
1/6 hp
Series
MY Series

Description

Flange Mount Relay, Coil Voltage 120V AC, Contact Form 4PDT, Current Rating 3 A, Electrical Connection Plug-In Terminal, Number of Pins 14, Sealing Enclosed, Status Indicator No Indicator, Contact Rating (AC) 0.8 A @ 240V, 3 A @ 240V, Contact Rating (DC) 1.5 A @ 24V, 3 A @ 24V, Horsepower @ 120V AC 1/10 hp, Horsepower @ 240V AC 1/6 hp, Mounting Style Top Flange, Base Shape Square, Body Depth 1.41 in, Body Height 1.73 in, Body Width 0.88 in, Coil Resistance 4,430 ohm
