  13. Snap Action Switch, Hinge, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating

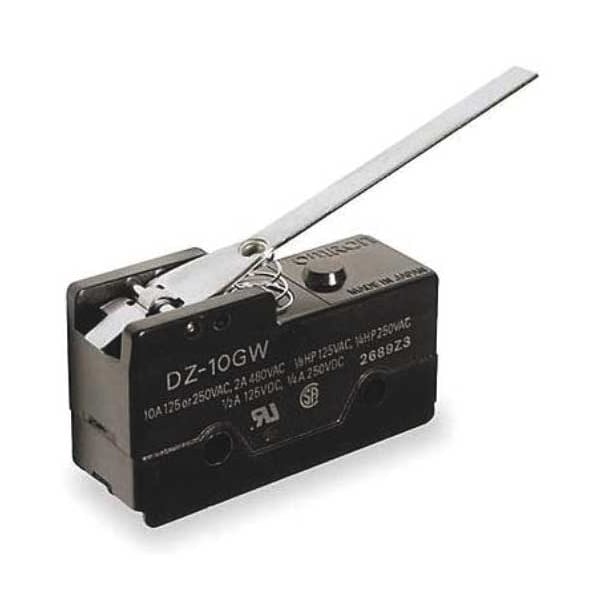

Omron Snap Action Switch, Hinge, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating DZ-10GW-1A - main

Snap Action Switch, Hinge, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating

  • Mfr # DZ-10GW-1A

  • Zoro # G1052037

product price: $23.85
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
10 A @ 240 V
DC Contact Rating - Snap Action Switch
10 A @ 30 V
Contact Form- Switches
DPDT
Lever Actuator Length - Snap Action Switch
2.5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DZ-10GW-1A
Zoro #
G1052037
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
2.5 in
Height - Snap Action Switch
1.1 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Mounting Dimension - Snap Action Switch
1.00 in Centers
Actuator Length
2.50"
Depth
0.69"
Height
1.10"
Length
1.94"
Mounting Dimension
1.00" Centers
Mounting Hole Diameter
3/16 in
Lever Actuator Length
2.5 in
Overall Depth
2.15 in
Overall Height
0.69 in
Body Depth
2.15 in
Overall Width
2.87 in
Body Height
0.69 in
Body Width
2.87 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
10 A @ 240 V
DC Contact Rating - Snap Action Switch
10 A @ 30 V
Contact Form- Switches
DPDT
Release Force
0.97 ozf
Max. Pretravel
25.5 mm
Operating Temp. Range
-13 Degrees to 176 Degrees F
Electrical Connection - Snap Action Switch
Solder Lug
Differential Travel
0.016 in
Operating Force
6 oz
Type of Actuator
Hinge Lever
Watertight - Snap Action Switch
No
Standards
CSA, RU, UL 508
Housing Material
Phenolic
Over Travel
0.063 in
Current Rating
10A
Series
DZ
Terminal Type
Solder
Voltage Rating
125/250VAC
Contact Form
3NO/3NC
AC Contact Rating
10 A @ 250 V
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V, 10 A @ 14 V, 10 A @ 30 V, 10 A @ 8 V
Operating Force - Minimum
1.67 N
Operating Temperature - Minimum
-13 Degrees F
Pretravel
1.004 in
Actuator Style
Hinge Lever
Body Material
Phenolic
Electrical Connection
Solder
Center Mounting Hole Distance
1 in
Overtravel
0.063 in
Differential Travel - Maximum
0.1575 in
Operating Force - Maximum
1.67 N
Operating Temperature - Maximum
176 Degrees F

Description

Snap Action Switch, Hinge, Lever, AC Contact Rating - Snap Action Switch 10 A @ 240 V, DC Contact Rating - Snap Action Switch 10 A @ 30 V, Contact Form- Switches DPDT, Lever Actuator Length - Snap Action Switch 2.5 in, Height - Snap Action Switch 1.1 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series DZ
