  13. Snap Action Switch, Hinge, Lever, Short Actuator, SPDT, 20 A at 480 V AC Contact Rating

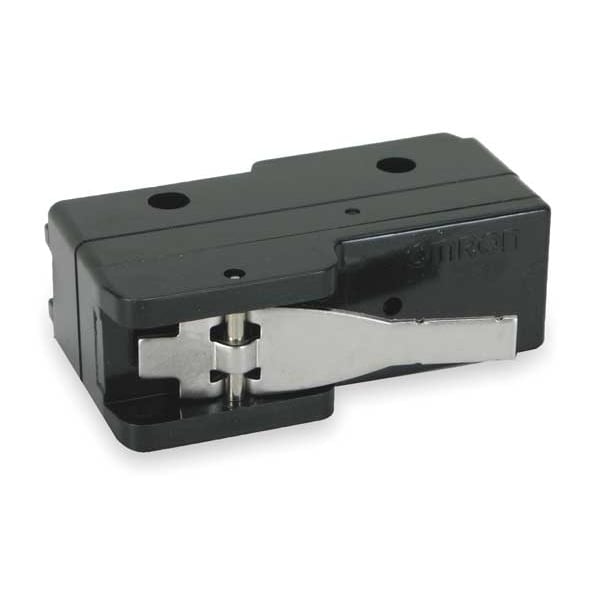

Omron Snap Action Switch, Hinge, Lever, Short Actuator, SPDT, 20 A at 480 V AC Contact Rating A-20GV21 - main

Snap Action Switch, Hinge, Lever, Short Actuator, SPDT, 20 A at 480 V AC Contact Rating

  • Mfr # A-20GV21

  • Zoro # G2019787

product price: $12.75
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge, Lever, Short
AC Contact Rating - Snap Action Switch
20 A @ 480 V
DC Contact Rating - Snap Action Switch
20 A @ 14 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.12 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A-20GV21
Zoro #
G2019787
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
1.12 in
Height - Snap Action Switch
1.05 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Depth
0.69"
Height
1.05"
Mounting Dimension
1.00" Centers
Mounting Dimension - Snap Action Switch
1.00 in Centers
Length
1.94"
Actuator Length
1.12"
Overall Height
1.05 in
Body Width
1.94 in
Body Depth
0.69 in
Body Height
1.05 in
Overall Width
1.94 in
Mounting Hole Diameter
3/16 in
Overall Depth
0.69 in
Lever Actuator Length
1.12 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever, Short
AC Contact Rating - Snap Action Switch
20 A @ 480 V
DC Contact Rating - Snap Action Switch
20 A @ 14 V
Contact Form- Switches
SPDT
Standards
CSA, UL Listed
Terminal Type
Solder
Operating Temp. Range
-13 Degrees to 176 Degrees F
Contact Form
1NO/1NC
Max. Pretravel
0.256 in
Current Rating
20A
Type of Actuator
Short Hinge Lever
Housing Material
Phenolic
Release Force
1.48 ozf
Voltage Rating
125/250/480VAC
Electrical Connection - Snap Action Switch
Solder Lug
Differential Travel
0.047 in
Over Travel
0.05 in
Series
A
Watertight - Snap Action Switch
No
Operating Force
5.65 oz
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
AC Contact Rating
20 A @ 480 V
Differential Travel - Maximum
0.0472 in
Electrical Connection
Solder
Center Mounting Hole Distance
1 in
Operating Temperature - Maximum
176 Degrees F
Body Material
Phenolic
Actuator Style
Hinge Lever
Operating Force - Minimum
1.57 N
Overtravel
0.047 in
Operating Temperature - Minimum
-13 Degrees F
Roller Adjustability
Fixed
Pretravel
0.256 in
Operating Force - Maximum
1.57 N

Description

Snap Action Switch, Hinge, Lever, Short, AC Contact Rating - Snap Action Switch 20 A @ 480 V, DC Contact Rating - Snap Action Switch 20 A @ 14 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.12 in, Height - Snap Action Switch 1.05 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series A
