Shop EATON

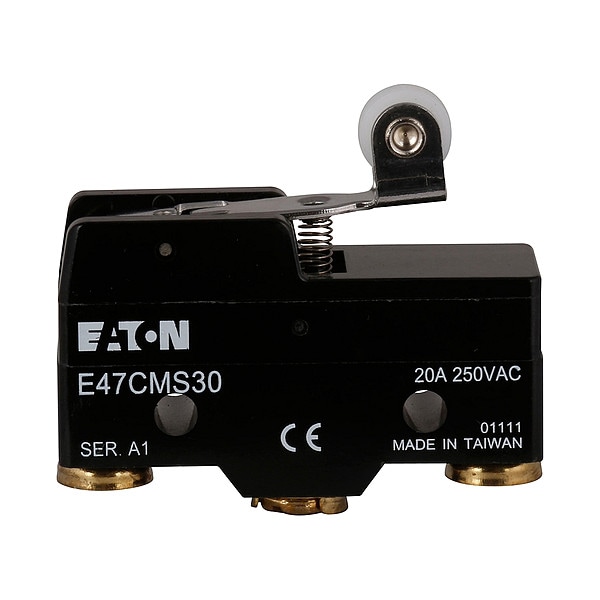

Snap Action Switch, Thermoplastic, Metal

  • Mfr # E47CMS30
  • Zoro # G813321801
product price:
$
31.29
/ea

Key Features

Center Mounting Hole Distance
1 in
Operating Temperature - Maximum
176 Degrees F
Series
E47
Electrical Connection
Screw Terminal
Release Force
1.48 ozf
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E47CMS30
Zoro #
G813321801
UPC #
782114397558
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturer Warranty Length
1 yr
Overall Width
0.69 in
Overall Height
1.78 in
Overall Depth
1.94 in
Lever Actuator Length
4.33 in
Actuator Length
4.33 in
Mounting Hole Diameter
4.32 mm

Details

Item
Snap Action Switch
Center Mounting Hole Distance
1 in
Operating Temperature - Maximum
176 Degrees F
Series
E47
Electrical Connection
Screw Terminal
Release Force
1.48 ozf
Standards
CSA, UL Listed
Operating Force - Maximum
1.77 N
Pretravel
0.016 in
Actuator Style
Hinged Roller-Plunger
DC Contact Rating
6 A @ 30 V
Contact Form
1NO/1NC
Body Material
Thermoplastic
AC Contact Rating
20 A @ 250 V
Operating Temperature - Minimum
-13 Degrees F
Includes
Integral Leaf Lever
Operating Force - Minimum
0.41 N
Roller Position
Top
Roller Material
Metal
Differential Travel - Maximum
0.02 in
Roller Adjustability
Fixed
Overtravel
0.094 in
IP Rating
IP23
Boot Sealed Actuator
No Boot Included
Pre-Travel - Linear
0.016 in
Includes Actuator
Actuator Included
Body Configuration
Non Plug-In
Action
Momentary
Switch Structure
SPDT
Over Travel - Linear
0.094 in
Mounting Hole Horizontal Center to Center Distance
1 in
Directional Movement
Linear
Mounting Style
Surface
NEMA Enclosure Rating
1
Number of Mounting Holes
2
Differential Travel - Linear
0.02 in

Description

Snap Action Switch, Series E47
