  13. Snap Action Switch, Hinge Roller, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating

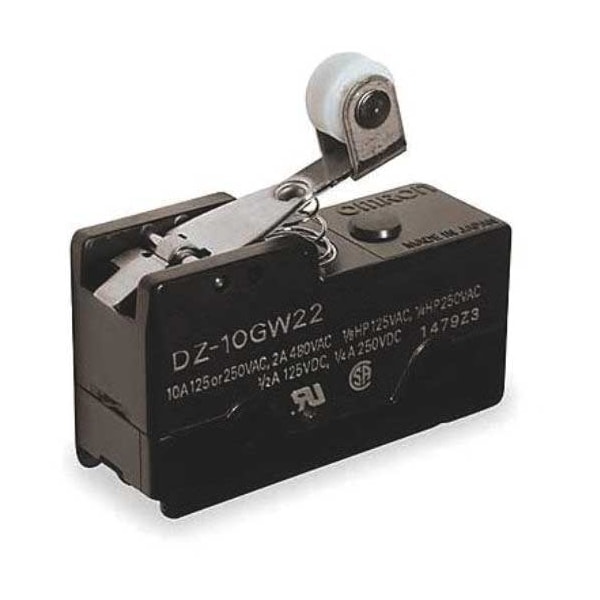

Omron Snap Action Switch, Hinge Roller, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating DZ-10GW22-1A - main

Snap Action Switch, Hinge Roller, Lever Actuator, DPDT, 10 A at 240 V AC Contact Rating

  • Mfr # DZ-10GW22-1A

  • Zoro # G2203932

product price: $23.29
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge Roller, Lever
AC Contact Rating - Snap Action Switch
10 A @ 240 V
DC Contact Rating - Snap Action Switch
10 A @ 30 V
Contact Form- Switches
DPDT
Lever Actuator Length - Snap Action Switch
1.03 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DZ-10GW22-1A
Zoro #
G2203932
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
1.03 in
Height - Snap Action Switch
1.1 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Actuator Length
1.03"
Height
1.10"
Length
1.94"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Mounting Dimension
1.00" Centers
Depth
0.69"
Mounting Hole Diameter
3/16 in
Overall Height
0.69 in
Lever Actuator Length
1.03 in
Overall Width
1.94 in
Roller Width
0.16 in
Roller Diameter
0.37 in
Body Width
1.94 in
Body Depth
1.89 in
Body Height
0.69 in
Overall Depth
1.89 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge Roller, Lever
AC Contact Rating - Snap Action Switch
10 A @ 240 V
DC Contact Rating - Snap Action Switch
10 A @ 30 V
Contact Form- Switches
DPDT
Voltage Rating
125/250VAC
Operating Force
14.12 oz
Watertight - Snap Action Switch
No
Series
DZ
Differential Travel
0.095 in
Terminal Type
Solder
Current Rating
10A
Standards
CSA, RU
Over Travel
0.035 in
Electrical Connection - Snap Action Switch
Solder Lug
Contact Form
3NO/3NC
Operating Temp. Range
-13 Degrees to 176 Degrees F
Type of Actuator
Hinge Roller Lever
Release Force
2.99 ozf
Max. Pretravel
9.5 mm
Housing Material
Phenolic
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
AC Contact Rating
2 A @ 480 V
Overtravel
0.035 in
Body Material
Phenolic
Electrical Connection
Solder
Actuator Style
Hinge Roller Lever
Differential Travel - Maximum
0.0945 in
Operating Force - Minimum
3.92 N
Roller Position
Inside Offset
Center Mounting Hole Distance
1 in
Roller Adjustability
Fixed
Operating Temperature - Maximum
176 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Pretravel
0.374 in
Operating Force - Maximum
3.92 N
Roller Material
Plastic

Description

Snap Action Switch, Hinge Roller, Lever, AC Contact Rating - Snap Action Switch 10 A @ 240 V, DC Contact Rating - Snap Action Switch 10 A @ 30 V, Contact Form- Switches DPDT, Lever Actuator Length - Snap Action Switch 1.03 in, Height - Snap Action Switch 1.1 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series DZ
