  7. Snap Action Switch, Panel Mount, Plunger Actuator, SPDT, 20 A at 480 V AC Contact Rating

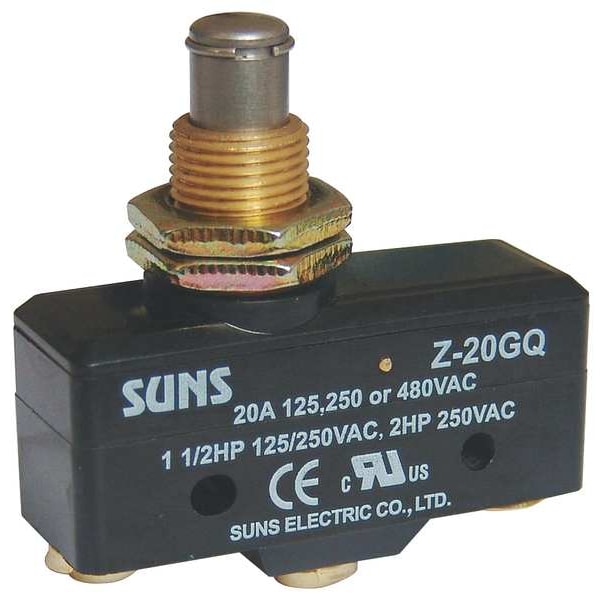

Zoro Select Snap Action Switch, Panel Mount, Plunger Actuator, SPDT, 20 A at 480 V AC Contact Rating 5JEF0 - main

Snap Action Switch, Panel Mount, Plunger Actuator, SPDT, 20 A at 480 V AC Contact Rating

  • Mfr # 5JEF0

  • Zoro # G0373572

product price:  $20.39
/ea

Key Features

Actuator Type - Snap Action Switch
Panel Mount, Plunger
AC Contact Rating - Snap Action Switch
20 A @ 480 V
Contact Form- Switches
SPDT
Height - Snap Action Switch
1.28 in
Width - Snap Action Switch
1.94 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5JEF0
Zoro #
G0373572
UPC #
190735527832
Country of Origin
China

Dimensions

Height - Snap Action Switch
1.28 in
Width - Snap Action Switch
1.94 in
Length
1.94"
Mounting Dimension
1.00" Centers
Mounting Dimension - Snap Action Switch
1.00 in Centers
Height
1.28"
Actuator Length
1.94"
Body Width
1.94 in
Overall Width
1.94 in
Body Height
1.28 in
Overall Height
1.28 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Panel Mount, Plunger
AC Contact Rating - Snap Action Switch
20 A @ 480 V
Contact Form- Switches
SPDT
Operating Force
22.03 oz
Electrical Connection - Snap Action Switch
Screw
Type of Actuator
Panel Mount Plunger
Housing Material
Phenolic Case and Cover
Current Rating
20A
Differential Travel
0.109 in
Over Travel
0.219 in
Series
Z
Release Force
10 ozf
Operating Temp. Range
-13 Degrees to 185 Degrees F
Max. Pretravel
0.051 in
Terminal Type
Screw
Watertight - Snap Action Switch
No
Contact Form
1NO/1NC
Voltage Rating
125/250/480VAC
AC Contact Rating
20 A @ 480 V
Actuator Style
Plunger
Overtravel
0.219 in
Electrical Connection
Screw
Pretravel
0.051 in
Operating Temperature - Maximum
185 Degrees F
Operating Force - Maximum
22.03 ozf
Body Material
Phenolic
Operating Temperature - Minimum
-13 Degrees F
Differential Travel - Maximum
0.109 in
Center Mounting Hole Distance
1 in

Description

Snap Action Switch, Panel Mount, Plunger, AC Contact Rating - Snap Action Switch 20 A @ 480 V, Contact Form- Switches SPDT, Height - Snap Action Switch 1.28 in, Width - Snap Action Switch 1.94 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series Z
