  13. Snap Action Switch, Hinge Roller, Lever Actuator, SPDT, 20 A at 480 V AC Contact Rating

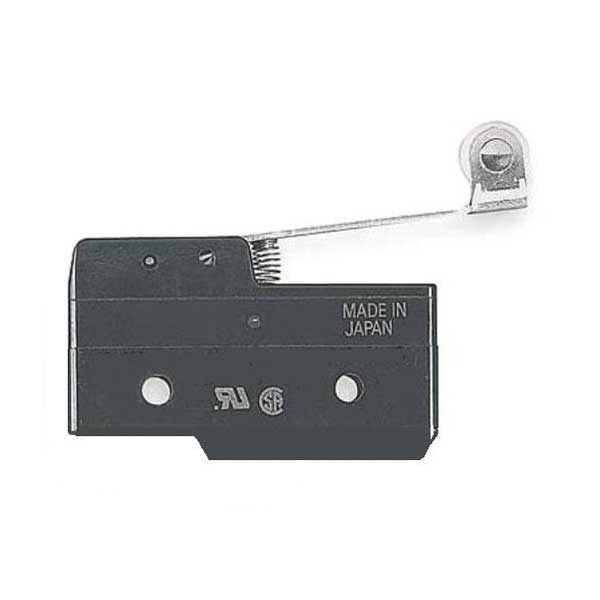

Omron Snap Action Switch, Hinge Roller, Lever Actuator, SPDT, 20 A at 480 V AC Contact Rating A-20GV2 - main

Snap Action Switch, Hinge Roller, Lever Actuator, SPDT, 20 A at 480 V AC Contact Rating

  • Mfr # A-20GV2

  • Zoro # G0243503

product price: $16.85
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge Roller, Lever
AC Contact Rating - Snap Action Switch
20 A @ 480 V
DC Contact Rating - Snap Action Switch
20 A @ 14 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.91 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A-20GV2
Zoro #
G0243503
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
1.91 in
Height - Snap Action Switch
1.05 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Mounting Dimension - Snap Action Switch
1.00 in Centers
Depth
0.69"
Actuator Length
1.91"
Height
1.05"
Mounting Dimension
1.00" Centers
Length
1.94"
Mounting Hole Diameter
3/16 in
Lever Actuator Length
1.91 in
Overall Depth
0.69 in
Body Height
1.05 in
Overall Width
1.94 in
Body Depth
0.69 in
Body Width
1.94 in
Roller Width
0.16 in
Roller Diameter
0.37 in
Overall Height
1.05 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge Roller, Lever
AC Contact Rating - Snap Action Switch
20 A @ 480 V
DC Contact Rating - Snap Action Switch
20 A @ 14 V
Contact Form- Switches
SPDT
Voltage Rating
125/250/480VAC
Operating Force
3.18 oz
Standards
CSA, UL Listed
Differential Travel
0.087 in
Electrical Connection - Snap Action Switch
Solder Lug
Max. Pretravel
0.473 in
Operating Temp. Range
-13 Degrees to 176 Degrees F
Contact Form
1NO/1NC
Release Force
0.49 ozf
Series
A
Type of Actuator
Hinge Roller Lever
Terminal Type
Solder
Current Rating
20A
Watertight - Snap Action Switch
No
Over Travel
0.09 in
Housing Material
Phenolic
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
AC Contact Rating
20 A @ 480 V
Body Material
Phenolic
Pretravel
0.472 in
Overtravel
0.094 in
Electrical Connection
Solder
Roller Position
Outside Offset
Center Mounting Hole Distance
1 in
Differential Travel - Maximum
0.0866 in
Operating Temperature - Maximum
176 Degrees F
Actuator Style
Hinge Roller Lever
Operating Force - Minimum
0.88 N
Roller Adjustability
Fixed
Operating Temperature - Minimum
-13 Degrees F
Operating Force - Maximum
1.57 N
Roller Material
Stainless Steel

Description

Snap Action Switch, Hinge Roller, Lever, AC Contact Rating - Snap Action Switch 20 A @ 480 V, DC Contact Rating - Snap Action Switch 20 A @ 14 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.91 in, Height - Snap Action Switch 1.05 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series A
