  13. Snap Action Switch, Hinge Roller, Lever, Short Actuator, SPDT, 15 A at 480 V AC Contact Rating

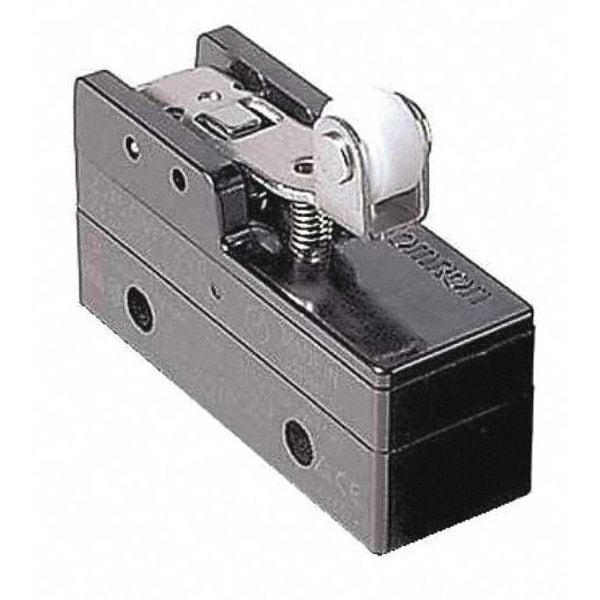

Omron Snap Action Switch, Hinge Roller, Lever, Short Actuator, SPDT, 15 A at 480 V AC Contact Rating Z-15GW22 - main

Snap Action Switch, Hinge Roller, Lever, Short Actuator, SPDT, 15 A at 480 V AC Contact Rating

  • Mfr # Z-15GW22

  • Zoro # G2369044

product price: $12.29
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge Roller, Lever, Short
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 14 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.05 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
Z-15GW22
Zoro #
G2369044
UPC #
-
Country of Origin
Indonesia

Dimensions

Lever Actuator Length - Snap Action Switch
1.05 in
Height - Snap Action Switch
1.05 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Actuator Length
1.05"
Depth
0.69"
Mounting Dimension
1.00" Centers
Length
1.94"
Height
1.05"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Roller Width
0.16 in
Body Depth
0.69 in
Mounting Hole Diameter
3/16 in
Body Height
0.69 in
Overall Width
1.94 in
Overall Height
0.69 in
Roller Diameter
0.37 in
Lever Actuator Length
1.05 in
Body Width
1.94 in
Overall Depth
0.69 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge Roller, Lever, Short
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 14 V
Contact Form- Switches
SPDT
Differential Travel
0.02 in
Contact Form
1NO/1NC
Series
Z
Housing Material
Phenolic
Current Rating
15a
Terminal Type
Solder
Over Travel
0.095 in
Max. Pretravel
3.1 mm
Watertight - Snap Action Switch
No
Operating Force
7.06 oz
Standards
CSA, UL Listed
Release Force
1.47 ozf
Operating Temp. Range
-13 Degrees to 176 Degrees F
Electrical Connection - Snap Action Switch
Solder Lug
Type of Actuator
Short Hinge Roller Lever
Voltage Rating
125/250VAC
AC Contact Rating
15 A @ 250 V
DC Contact Rating
15 A @ 14 V
Operating Temperature - Maximum
176 Degrees F
Actuator Style
Hinge Roller Lever
Operating Force - Minimum
1.57 N
Body Material
Phenolic
Overtravel
0.094 in
Pretravel
0.095 in
Center Mounting Hole Distance
1 in
Operating Temperature - Minimum
-13 Degrees F
Operating Force - Maximum
1.57 N
Roller Material
Plastic
Roller Position
Outside Offset
Electrical Connection
Solder
Roller Adjustability
Fixed
Differential Travel - Maximum
0.0197 in

Description

Snap Action Switch, Hinge Roller, Lever, Short, AC Contact Rating - Snap Action Switch 15 A @ 480 V, DC Contact Rating - Snap Action Switch 15 A @ 14 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.05 in, Height - Snap Action Switch 1.05 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series Z
