Shop EATON

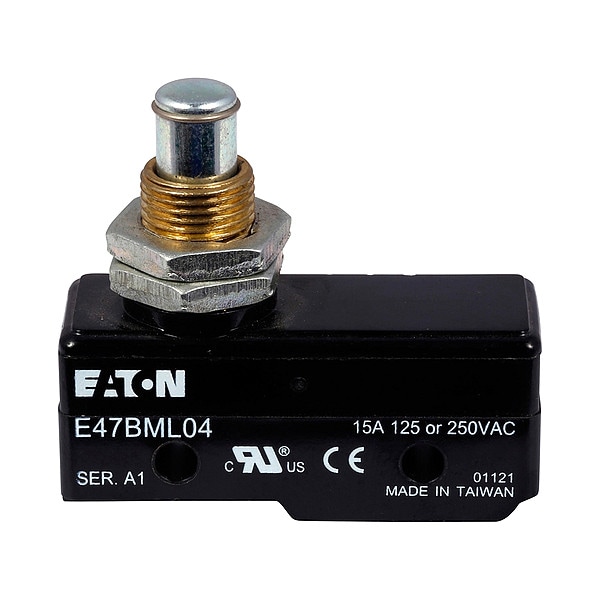

Snap Action Switch, Thermoplastic, Metal

  • Mfr # E47BML04

  • Zoro # G913321848

product price:  $37.39
/ea

Key Features

Series
E47
Operating Temperature - Maximum
176 Degrees F
Actuator Style
Plunger
Contact Form
1NO/1NC
Pretravel
0.016 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E47BML04
Zoro #
G913321848
UPC #
782113770871
Country of Origin
Taiwan, Province of China

Dimensions

Overall Depth
0.69 in
Manufacturer Warranty Length
1 yr
Overall Height
0.7 in
Lever Actuator Length
0.86 in
Overall Width
1.36 in
Roller Width
0.21 in
Mounting Hole Diameter
4 5/16 mm

Details

Item
Snap Action Switch
Series
E47
Operating Temperature - Maximum
176 Degrees F
Actuator Style
Plunger
Contact Form
1NO/1NC
Pretravel
0.016 in
DC Contact Rating
6 A @ 30 V DC
Release Force
4.02 ozf
Operating Force - Minimum
0 N
Standards
CE, CSA, UL Listed
Operating Temperature - Minimum
-13 Degrees F
AC Contact Rating
15 A @ 125 V
Operating Force - Maximum
3.43 N
Body Material
Thermoplastic
Includes
Extended Straight Plunger
Electrical Connection
Screw Terminal
Center Mounting Hole Distance
1 in
Differential Travel - Maximum
0.002 in
Roller Material
Metal
Overtravel
0.217 in
Roller Position
Top
Over Travel - Linear
0.217 in
Mounting Style
Surface
Pre-Travel - Linear
0.016 in
Mounting Hole Horizontal Center to Center Distance
1 in
Switch Structure
SPDT
IP Rating
IP23

Description

Snap Action Switch, Series E47
