  13. Snap Action Switch, Lever, Roller Actuator, SPDT, 15 A at 480 V AC Contact Rating

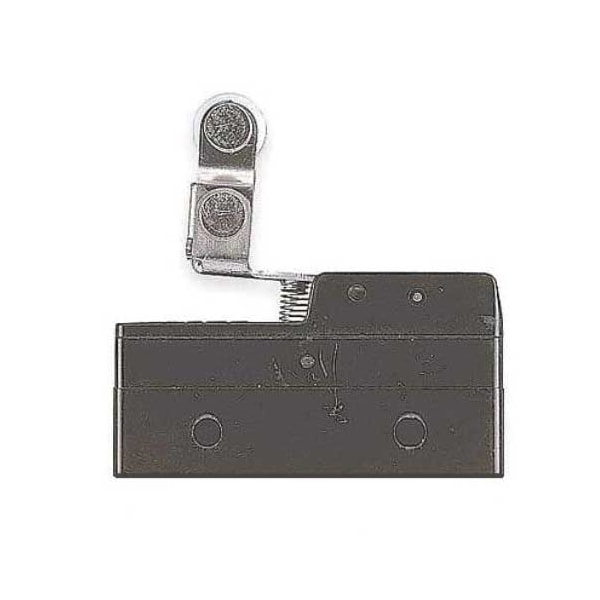

Omron Snap Action Switch, Lever, Roller Actuator, SPDT, 15 A at 480 V AC Contact Rating Z-15GW2277 - main

Snap Action Switch, Lever, Roller Actuator, SPDT, 15 A at 480 V AC Contact Rating

  • Mfr # Z-15GW2277

  • Zoro # G0656695

product price: $11.35
/ea

Key Features

Actuator Type - Snap Action Switch
Lever, Roller
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 14 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.26 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
Z-15GW2277
Zoro #
G0656695
UPC #
-
Country of Origin
Japan

Dimensions

Lever Actuator Length - Snap Action Switch
1.26 in
Height - Snap Action Switch
1.05 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Mounting Dimension - Snap Action Switch
1.00 in Centers
Depth
0.69"
Actuator Length
1.26"
Mounting Dimension
1.00" Centers
Height
1.05"
Length
1.94"
Overall Height
0.69 in
Overall Width
1.94 in
Body Height
0.69 in
Body Width
1.94 in
Overall Depth
0.69 in
Lever Actuator Length
1.26 in
Body Depth
1.97 in
Roller Diameter
0.37 in
Roller Width
0.16 in
Mounting Hole Diameter
3/16 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Lever, Roller
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 14 V
Contact Form- Switches
SPDT
Electrical Connection - Snap Action Switch
Solder Lug
Contact Form
1NO/1NC
Watertight - Snap Action Switch
No
Current Rating
15a
Release Force
1.47 ozf
Terminal Type
Solder
Over Travel
0.095 in
Housing Material
Phenolic
Voltage Rating
125/250VAC
Standards
CSA, UL Listed
Operating Temp. Range
-13 Degrees to 176 Degrees F
Operating Force
6.35 oz
Series
Z
Differential Travel
0.02 in
Max. Pretravel
3.1 mm
Type of Actuator
Unidirectional Short Roller Lever
Includes
Short Hinge Roller Lever
AC Contact Rating
15 A @ 250 V
DC Contact Rating
15 A @ 14 V
Roller Position
Outside Offset
Operating Force - Minimum
1.67 N
Electrical Connection
Solder
Roller Material
Plastic
Body Material
Phenolic
Center Mounting Hole Distance
1 in
Differential Travel - Maximum
0.0315 in
Operating Temperature - Maximum
176 Degrees F
Roller Adjustability
Fixed
Operating Force - Maximum
1.77 N
Overtravel
0.094 in
Actuator Style
Hinge Roller Lever
Pretravel
0.095 in
Operating Temperature - Minimum
-13 Degrees F

Description

Snap Action Switch, Lever, Roller, AC Contact Rating - Snap Action Switch 15 A @ 480 V, DC Contact Rating - Snap Action Switch 15 A @ 14 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.26 in, Height - Snap Action Switch 1.05 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series Z
