  13. Snap Action Switch, Pin, Plunger Actuator, SPDT, 15 A at 480 V AC Contact Rating

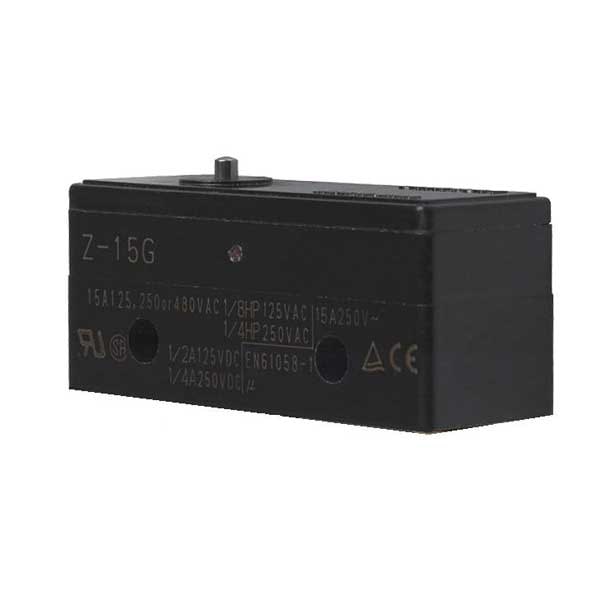

Omron Snap Action Switch, Pin, Plunger Actuator, SPDT, 15 A at 480 V AC Contact Rating Z-15G - main

Snap Action Switch, Pin, Plunger Actuator, SPDT, 15 A at 480 V AC Contact Rating

  • Mfr # Z-15G

  • Zoro # G0468027

product price: $12.29
/ea
Sold in multiples of 2 for $24.58

Key Features

Actuator Type - Snap Action Switch
Pin, Plunger
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 14 V
Contact Form- Switches
SPDT
Height - Snap Action Switch
0.84 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
Z-15G
Zoro #
G0468027
UPC #
-
Country of Origin
Indonesia

Dimensions

Height - Snap Action Switch
0.84 in
Height
0.84
Mounting Dimension
1.00" Centers
Mounting Dimension - Snap Action Switch
1.00 in Centers
Overall Height
0.69 in
Body Depth
0.95 in
Mounting Hole Diameter
3/16 in
Overall Width
1.94 in
Body Height
0.69 in
Body Width
1.94 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Pin, Plunger
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 14 V
Contact Form- Switches
SPDT
Release Force
4.03 ozf
Operating Temp. Range
-13 Degrees to 176 Degrees F
Type of Actuator
Pin Plunger
Electrical Connection - Snap Action Switch
Solder Lug
Operating Force
8.83 to 12.36 oz
Watertight - Snap Action Switch
No
Current Rating
15a
Voltage Rating
125/250VAC
Contact Form
1NO/1NC
Over Travel
0.005 in
Differential Travel
0.002 in
Series
Z
Housing Material
Phenolic
Terminal Type
Solder
Max. Pretravel
0.016 in
Standards
CSA, UL Listed
AC Contact Rating
15 A @ 250 V
DC Contact Rating
15 A @ 14 V
Operating Force - Minimum
2.45 N
Actuator Style
Pin Plunger
Roller Adjustability
Fixed
Operating Force - Maximum
3.43 N
Center Mounting Hole Distance
1 in
Body Material
Phenolic
Operating Temperature - Maximum
176 Degrees F
Pretravel
0.016 in
Differential Travel - Maximum
0.002 in
Overtravel
0.005 in
Operating Temperature - Minimum
-13 Degrees F
Electrical Connection
Solder

Description

Snap Action Switch, Pin, Plunger, AC Contact Rating - Snap Action Switch 15 A @ 480 V, DC Contact Rating - Snap Action Switch 15 A @ 14 V, Contact Form- Switches SPDT, Height - Snap Action Switch 0.84 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series Z
