- MFR #
- 103Q0010MHT
- Zoro #
- G7214258
- UPC #
- -
- Country of Origin
- United States
- Item

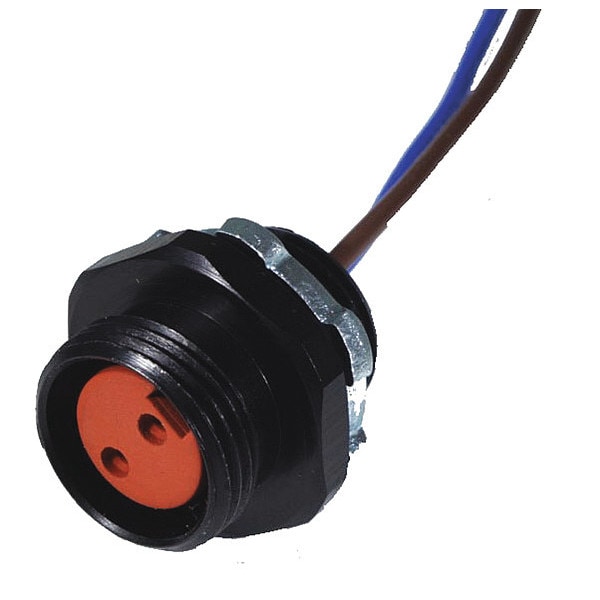

- Mini Link Receptacle
- IP Rating
- IP67
- Max. Amps
- 13 A
- Maximum Operating Temperature
- 356 Degrees F
- Temp. Range
- -58 Degrees to 356 Degrees F
- For Use With
- 12 and 18mm Proximity Sensors; Limit Switches; Photoelectric Switches; Solenoids And Hydraulic Valves; Foot Operated Switches; Power Tools; Cranes, Hoists and their Controls
- Color
- Green, Black, White
- Max. Voltage
- 600VAC/DC
- Number of Conductors
- 3
- NEMA Rating
- 6P
- Features
Multiple Hole Bushings in a Variety Of Hole Combinations; Slit Bushings; Embedded O-Rings; Nickel Coated then Gold Plated Contacts for Enhanced Corrosion Resistance and Conductivity; Pins and Contacts Crimped onto Wires Assuring Secure Terminations, Precision Machined Contacts for Highly Accurate Tolerances; Heavy-Duty SOOW, SJOOW or STOW Cable Options; Integral Strain Relief and Plated Coupling Nuts
- Shell Material
- Machined Aluminum
- Poles
- 3
- Contact Resistance (Micro Ohms)
- 5
- Minimum Operating Temperature (F)
- -58
- Connector Style
- MiniLink
- Voltage Rating (AC)
- 600
- Conductor Color 1
- Green
- Cable Code
- Auto
- Receptacle Lead Jacket Material
- Silicone
- Wiring Color Code
- Auto CC
- Insert Material
- Silicone
- Conductor Color 2
- Black
- Receptacle Configuration
- Female Straight
- Locknut Material
- Steel
- Shell Plating
- Black Anodized
- Contact Sleeve
- Stainless Steel
- Thread 1
- 7/8-16 UNS
- Conductor Color 3
- White
- O-Ring Material
- Viton
- Contact Carrier Material
- Silicone
- Cable Strand
- 26 X #30
- Thread 2
- 1/2-14 NPT
- Voltage Rating (DC)
- 600
- Contact Material
- Brass, Gold Plated Over Nickel"
