  13. Snap Action Switch, Plunger Actuator, SPDT, 15 A at 480 V AC Contact Rating

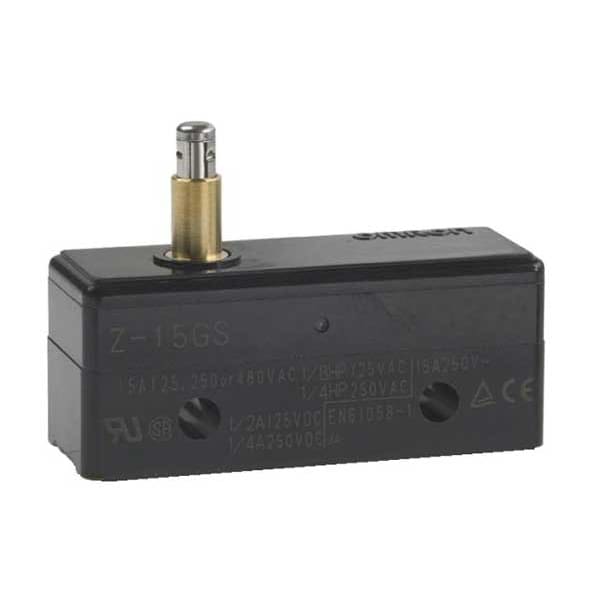

Omron Snap Action Switch, Plunger Actuator, SPDT, 15 A at 480 V AC Contact Rating Z-15GS - main

Snap Action Switch, Plunger Actuator, SPDT, 15 A at 480 V AC Contact Rating

  • Mfr # Z-15GS

  • Zoro # G2168241

product price: $11.75
/ea

Key Features

Actuator Type - Snap Action Switch
Plunger
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 14 V
Contact Form- Switches
SPDT
Height - Snap Action Switch
0.84 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
Z-15GS
Zoro #
G2168241
UPC #
-
Country of Origin
Japan

Dimensions

Height - Snap Action Switch
0.84 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Depth
0.69"
Mounting Dimension
1.00" Centers
Mounting Dimension - Snap Action Switch
1.00 in Centers
Height
0.84"
Actuator Length
0.54"
Length
1.94"
Overall Height
0.69 in
Overall Width
1.94 in
Body Width
1.94 in
Body Height
0.69 in
Overall Depth
0.69 in
Body Depth
1.38 in
Mounting Hole Diameter
3/16 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Plunger
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 14 V
Contact Form- Switches
SPDT
Housing Material
Phenolic
Standards
CSA, UL Listed
Release Force
4.03 ozf
Series
Z
Terminal Type
Solder
Type of Actuator
Slim Spring Plunger
Operating Force
8.83 to 12.36 oz
Operating Temp. Range
-13 Degrees to 176 Degrees F
Voltage Rating
125/250VAC
Max. Pretravel
0.016 in
Current Rating
15a
Electrical Connection - Snap Action Switch
Solder Lug
Watertight - Snap Action Switch
No
Over Travel
0.063 in
Differential Travel
0.002 in
Contact Form
1NO/1NC
DC Contact Rating
15 A @ 14 V
AC Contact Rating
15 A @ 250 V
Operating Force - Minimum
2.45 N
Actuator Style
Plunger
Pretravel
0.016 in
Operating Temperature - Minimum
-13 Degrees F
Operating Force - Maximum
3.47 N
Differential Travel - Maximum
0.002 in
Body Material
Phenolic
Center Mounting Hole Distance
1 in
Electrical Connection
Solder
Roller Adjustability
Fixed
Overtravel
0.063 in
Operating Temperature - Maximum
176 Degrees F

Description

Snap Action Switch, Plunger, AC Contact Rating - Snap Action Switch 15 A @ 480 V, DC Contact Rating - Snap Action Switch 15 A @ 14 V, Contact Form- Switches SPDT, Height - Snap Action Switch 0.84 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series Z
