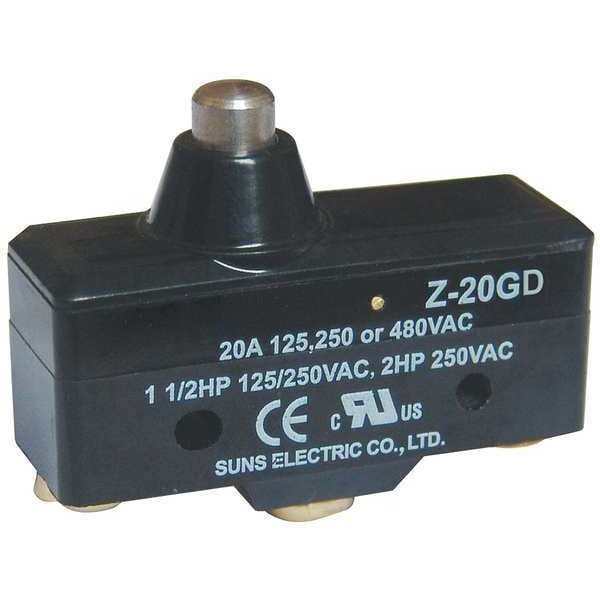

Snap Action Switch, Plunger, Short Actuator, SPDT, 20 A at 480 V AC Contact Rating

  • Mfr # 5JEE9

  • Zoro # G0775625

product price:  $12.55
/ea

Key Features

Actuator Type - Snap Action Switch
Plunger, Short
AC Contact Rating - Snap Action Switch
20 A @ 480 V
Contact Form- Switches
SPDT
Height - Snap Action Switch
1.45 in
Width - Snap Action Switch
1.94 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5JEE9
Zoro #
G0775625
UPC #
190735527825
Country of Origin
China

Dimensions

Height - Snap Action Switch
1.45 in
Width - Snap Action Switch
1.94 in
Actuator Length
1.94"
Mounting Dimension
1.00" Centers
Height
1.45"
Length
1.94"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Overall Width
1.94 in
Overall Height
1.45 in
Body Height
1.45 in
Body Width
1.94 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Plunger, Short
AC Contact Rating - Snap Action Switch
20 A @ 480 V
Contact Form- Switches
SPDT
Current Rating
20A
Voltage Rating
125/250/480VAC
Max. Pretravel
0.051 in
Operating Force
22.03 oz
Over Travel
0.118 in
Electrical Connection - Snap Action Switch
Screw
Contact Form
1NO/1NC
Operating Temp. Range
-13 Degrees to 185 Degrees F
Series
Z
Watertight - Snap Action Switch
No
Type of Actuator
Short Spring Plunger
Housing Material
Phenolic Case and Cover
Differential Travel
0.008 in
Terminal Type
Screw
Release Force
10 ozf
AC Contact Rating
20 A @ 480 V
Center Mounting Hole Distance
1 in
Electrical Connection
Screw Terminal
Differential Travel - Maximum
0.008 in
Pretravel
0.051 in
Operating Temperature - Minimum
-13 Degrees F
Operating Force - Minimum
6.13 N
Overtravel
0.118 in
Operating Force - Maximum
22.03 ozf
Actuator Style
Plunger
Operating Temperature - Maximum
185 Degrees F
Body Material
Phenolic
Mounting Hole Horizontal Center to Center Distance
1 in

Description

Snap Action Switch, Plunger, Short, AC Contact Rating - Snap Action Switch 20 A @ 480 V, Contact Form- Switches SPDT, Height - Snap Action Switch 1.45 in, Width - Snap Action Switch 1.94 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series Z
