  13. Snap Action Switch, Roller, Panel Mount, Plunger Actuator, SPDT, 15 A at 480 V AC Contact Rating

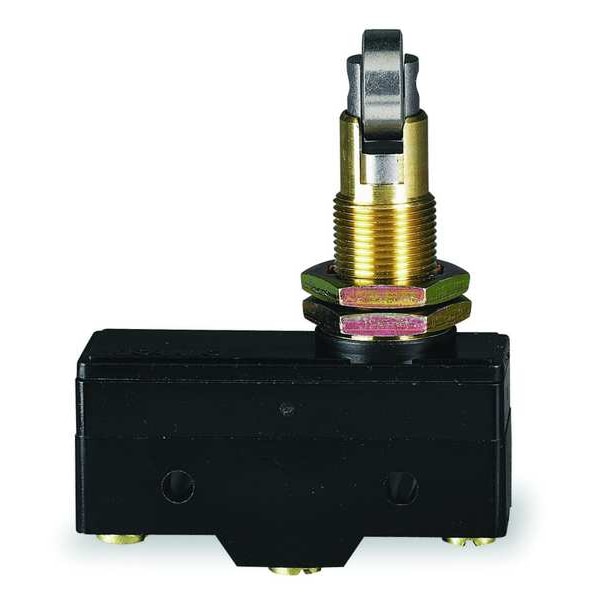

Omron Snap Action Switch, Roller, Panel Mount, Plunger Actuator, SPDT, 15 A at 480 V AC Contact Rating Z-15GQ21-B7-K - main

Snap Action Switch, Roller, Panel Mount, Plunger Actuator, SPDT, 15 A at 480 V AC Contact Rating

  • Mfr # Z-15GQ21-B7-K

  • Zoro # G0717351

product price: $20.85
/ea

Key Features

Actuator Type - Snap Action Switch
Roller, Panel Mount, Plunger
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 14 V
Contact Form- Switches
SPDT
Watertight - Snap Action Switch
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
Z-15GQ21-B7-K
Zoro #
G0717351
UPC #
-
Country of Origin
Japan

Dimensions

Mounting Dimension
1.03" Centers
Mounting Dimension - Snap Action Switch
1.03 in Centers
Overall Height
0.69 in
Roller Diameter
0.5 in
Body Width
1.94 in
Body Height
0.69 in
Mounting Hole Diameter
3/16 in
Overall Width
1.94 in
Roller Width
0.16 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Roller, Panel Mount, Plunger
AC Contact Rating - Snap Action Switch
15 A @ 480 V
DC Contact Rating - Snap Action Switch
15 A @ 14 V
Contact Form- Switches
SPDT
Watertight - Snap Action Switch
No
Type of Actuator
Panel Mount Cross Roller Plunger
Max. Pretravel
0.016 in
Differential Travel
0.002 in
Over Travel
0.141 in
Release Force
4.03 ozf
Operating Force
8.8 to 12.3 oz
Voltage Rating
480VAC
Contact Form
1NO/1NC
Series
Z
Operating Temp. Range
-25 Degrees to 80 Degrees C
Electrical Connection - Snap Action Switch
Screw
Housing Material
Phenolic
Terminal Type
Screw
Current Rating
15a
Standards
CSA, UL Listed
AC Contact Rating
15 A @ 250 V
DC Contact Rating
15 A @ 14 V
Overtravel
0.141 in
Operating Temperature - Maximum
176 Degrees F
Electrical Connection
Screw
Center Mounting Hole Distance
1 in
Differential Travel - Maximum
0.002 in
Operating Temperature - Minimum
-13 Degrees F
Operating Force - Maximum
3.43 N
Actuator Style
Plunger
Roller Position
Inside Offset
Body Material
Phenolic
Pretravel
0.016 in
Operating Force - Minimum
2.45 N
Roller Adjustability
Fixed
Roller Material
Stainless Steel

Description

Snap Action Switch, Roller, Panel Mount, Plunger, AC Contact Rating - Snap Action Switch 15 A @ 480 V, DC Contact Rating - Snap Action Switch 15 A @ 14 V, Contact Form- Switches SPDT, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.03 in Centers, Series Z
