  13. Solder, General Purpose Relay, Square, 3 A, 14, PCB
No Product Image Available

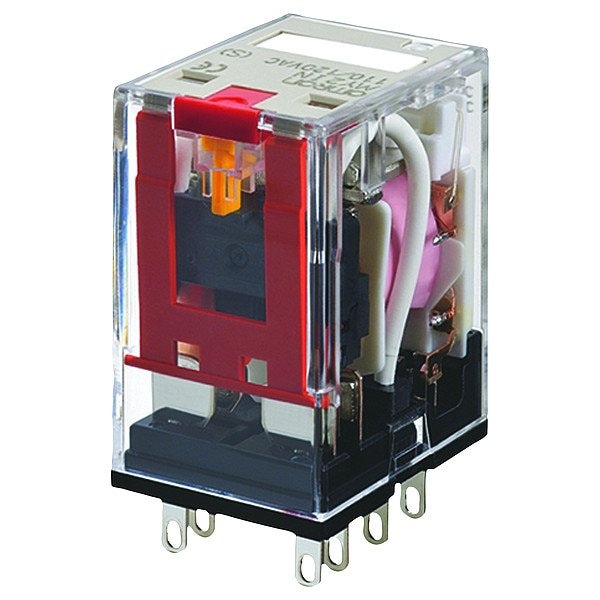

Solder, General Purpose Relay, Square, 3 A, 14, PCB

  • Mfr # MY4H-0-AC110/120

  • Zoro # G108449357

product price: $116.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
Solder
Electrical Connection
PCB
Base Shape
Square
Number of Pins
14
Coil Voltage
110/120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MY4H-0-AC110/120
Zoro #
G108449357
UPC #
4536853653972
Country of Origin
Japan

Dimensions

Body Depth
1.38 in
Flat Pin Width
0.102 in
Body Height
1.12 in
Overall Depth
1.59 in
Body Width
0.87 in

Details

Item
General Purpose Relay
Mounting Style
Solder
Electrical Connection
PCB
Base Shape
Square
Number of Pins
14
Coil Voltage
110/120V AC
Current Rating
3 A
Contact Form
4PDT
Contact Rating (AC)
0.8 A @ 110V, 3 A @ 110V
Contact Rating (DC)
1.5 A @ 24V, 3 A @ 24V
Standards
CSA Certified (File No. LR31928), EN 61810-1, LR Certified (Lloyd's Register) File No.98/10014
Contact Material
Gold Plated Silver
Status Indicator
No Indicator
Response Time
20 msec
Pin Shape
Flat
Resistance Properties
Contact-Resistant, Insulation-Resistant, Shock-Resistant, Vibration-Resistant
Electrical Operating Durability
100,000
Sealing
Hermetically Sealed
Insulation Resistance
100 megaohm
Coil Resistance
4,430 ohm
Power Consumption
0.9 VA, 1.3 VA
Maximum Switching Voltage
125V DC, 250V AC
Weight
1.76 oz
Dielectric Strength
1,000V AC Between Coil and Contacts, 1,000V AC Between Contacts of Different Polarity, 700V AC Between Contacts of Same Polarity
Mechanical Operating Durability
50,000,000
Minimum Operating Temperature
-13 Degrees F
Series
MY Series
Frequency
50/60 Hz
Maximum Operating Temperature
140 Degrees F
For Use With
Control Panel
Input Voltage
110/120V AC
Compatible with Manufacturer Model Number
PYF-14-PU, PYF-14-PU-L, PYF14S, PYF14T, PYFZ-14, PYFZ-14-E
Operating Current
0.8 A at 110V AC (Inductive Load), 1.5 A at 24V DC (Inductive Load)), 3 A at 110V AC (Resistive Load), 3 A at 24V DC (Resistive Load)
Compatible Manufacturer Part Number
PYF-14-PU, PYF-14-PU-L, PYF14S, PYF14T, PYFZ-14, PYFZ-14-E
Compatible Manufacturer Model Number
PYF-14-PU, PYF-14-PU-L, PYF14S, PYF14T, PYFZ-14, PYFZ-14-E

Description

Hermetically Sealed Relay, Base Shape Square, Coil Voltage 110/120V AC, Contact Form 4PDT, Current Rating 3 A, Electrical Connection PCB Terminal, Flat Pin Width 0.102 in, Number of Pins 14, Pin Shape Flat, Sealing Hermetically Sealed, Status Indicator No Indicator, Contact Rating (AC) 0.8 A @ 110V, 3 A @ 110V, Contact Rating (DC) 1.5 A @ 24V, 3 A @ 24V, Mounting Style Soldering, Body Depth 1.38 in, Body Height 1.12 in, Body Width 0.87 in, Coil Resistance 4,430 ohm

Restrictions

This item has been restricted from sale in the following states: CA
