Shop TELEMECANIQUE SENSORS

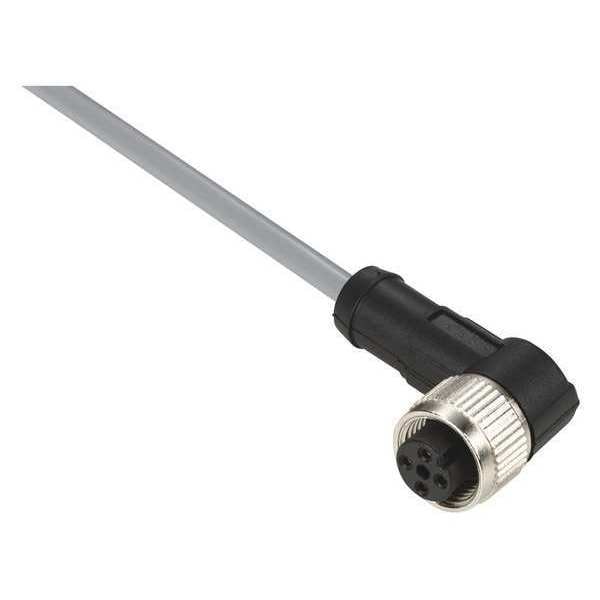

Cordset, 6.56 ft., Gray, 250VAC/300VDC

  • Mfr # XZCPV1241L2
  • Zoro # G9726044
product price:
$
15.59
/ea

Key Features

Product Type
Single Ended
End 1 Number of Pins
4
Cable Length
6.56 ft
Cable Jacket Material
PVC
Wire Size
18 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XZCPV1241L2
Zoro #
G9726044
UPC #
785901084082
Country of Origin
Czechia

Dimensions

Cable Length
6.56 ft
Wire Size
18 AWG
Cable Outer Diameter
4.6 mm
Fits Chest Size
Good Resistance to Moderate Mechanical Stress, Chemical Products and Humid Environments, Easy Cable Stripping

Details

Item
Cordset
Product Type
Single Ended
End 1 Number of Pins
4
Cable Jacket Material
PVC
IP Rating
IP65, IP67
Max. Amps
3 A
Maximum Operating Temperature
176 Degrees F
Temp. Range
-13 Degrees to 176 Degrees F
End 1 Connection Type
M12
End 2 Connection Type
Bare Wire
Max. Voltage
250 V AC, 300 V DC
End 1 Gender and Plug End
Female Right Angle
Standards
CSA Certified, IEC, UL Listed
End 1 Thread
M12
Features
Good Resistance to Moderate Mechanical Stress, Chemical Products and Humid Environments, Easy Cable Stripping
End 1 Keyway
Single
End 2 Gender and Plug End
Bare Wire
Number of Conductors
4
Color
Brown, Black, Blue, White
End 1 Number of Keyways
1
Cable Jacket Color
Gray
Minimum Operating Temperature
-13 Degrees F
Number of Wires
4
End 1 Gender
Female
End 1 Mounting Orientation
Right Angle
Line Rated Current
3A
Contact Resistance
5000µOhm
Cable Connector Fixing
screw-on
[Ue] Rated Operational Voltage
250 V AC || 300 V DC
Accessory / Separate Part Type
pre-wired connectors
Minimum Insulating Resistance
1 GΩ
Electrical Connection
elbowed female connector M12, 4 pins
Collar Material
metal
Accessory / Separate Part Category
cabling accessory
Status Led
without
Ambient Air Temperature For Operation
-25-80°C static
Series Name
general purpose
Ambient Air Temperature For Storage
-25-80°C
Product Certifications
cULus
Cable Composition
4 x 0.25 mm²

Description

Cordset, End 1 Gender Female, End 1 Thread M12, End 1 Number of Pins 4, End 1 Mounting Orientation Right Angle, End 1 Connection Type M12, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 2 m, Cable Jacket Color Gray, Cable Jacket Material PVC, Max. Amps 3 A, Wire Size 18 AWG, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, Standards CSA Certified, IEC, UL Listed

Restrictions

WARNING: This product can expose you to chemicals including Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
