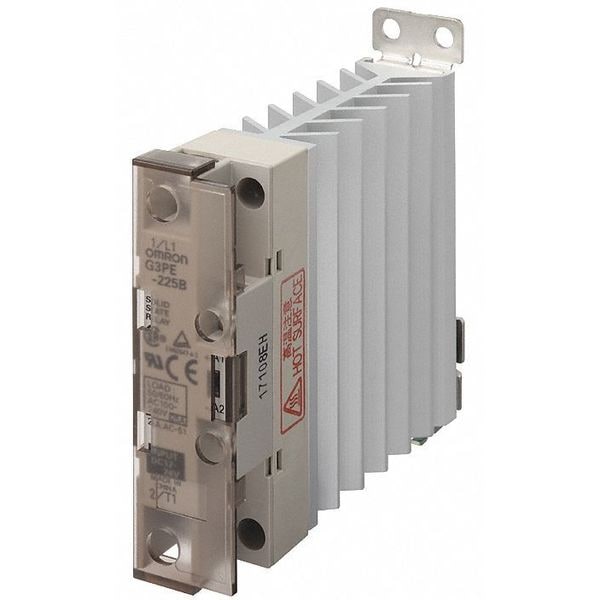

Solid State Relay, 1 Phase, Screw Clamp, DIN Rail & Screw, Phototriac
Mfr # G3PE-225B DC12-24
Zoro # G2959196
CAD Available
product price: $93.75
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Electrical Phase
1
Electrical Connection
Screw Clamp
Mounting Style
DIN Rail & Screw
Switch Component Type
Phototriac
Heat Sink
Integral
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
G3PE-225B DC12-24
Zoro #
G2959196
UPC #
-
Country of Origin
China
Dimensions
Overall Height - Relay
3.94 in
Body Depth
3.94 in
Body Height
3.3 in
Body Width
0.88 in
Overall Depth
3.94 in
Description
Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 17.4 to 35 A, Input Voltage 4 to 30V DC, Maximum Output Current with Heat Sink 25 A, Maximum Output Current without Heat Sink 25 A, Output Switching Mode Zero Crossing, Output Voltage Range 120 to 240V AC, Standards CSA Certified, EN Standards, RoHS Compliant, TUV Certified, UL Listed, Switch Component Type Phototriac, Current Type DC, Electrical Phase Single, Finger Safe Yes
