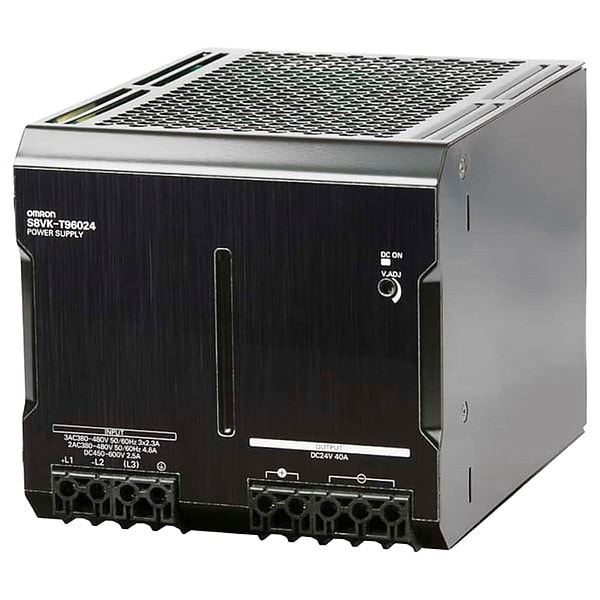

Switching Power Supply, 380/480V AC, 24V DC, 960 W, 40 A, DIN Rail

  • Mfr # S8VK-T96024

  • Zoro # G310791688

product price:
$
709.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
380/480V AC
Output Voltage - Nominal
24 V DC
Output Power - Rated
960 W
Current - Output
40 A
Mounting
DIN Rail
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S8VK-T96024
Zoro #
G310791688
UPC #
4548583358010
Country of Origin
China
Item
Switching Power Supply
Input Voltage
380/480V AC
Output Voltage - Nominal
24 V DC
Output Power - Rated
960 W
Current - Output
40 A
Mounting
DIN Rail
Phase
Three
Power Supply Style
Switching
Features
Power Boost Function at 120%, Three Year Warranty
Phase - Electrical
Three
Output Noise
60 mV Maximum
IP Rating
IP20
Style
Switching
Hold Up Time
35 msec
Standards
EN/IEC 60529
Output Amps
40A
Status Indicator
Green LED
Output Voltage
24V DC
Series
S8VK-T
Power Rating
960W
Hz
50/60 Hz
Operating Temp. Range
-40 to 70°C
Wire Connection Type
Rod Terminals
Special Features
LED Diagnostic Indicators, Overload Protection, Overvoltage Protection, Parallel Capability, Series Operation
Operating Temperature - Minimum
-40 Degrees F
Input Frequency - Nominal
50/60 Hz
Current - Inrush
6 A
Current - Peak
48 A
Operating Temperature - Maximum
158 Degrees F
Manufacturer Warranty
3 yr
Start Up Time - Maximum
500 msec
Mean Time Between Failures (MTBF)
135,000 hr
Hold Up Time - Minimum
35 msec
Input Frequency - Minimum
47 Hz
Input Frequency - Maximuim
63 Hz
Output Noise - Maximum
60 mV

Description

Switching Power Supply, Input Voltage 100 to 240V AC, Output Voltage 24 V DC, Power Rating 960 W, Output Amps 40 A, Mounting DIN Rail, Switching, Height 125 mm, Width 135 mm, Depth 150 mm, Series S8VK-T, Hz 50 Hz/60 Hz, Phase - Electrical Three, IP Rating IP20, Output Noise 60 mV Maximum, Status Indicator Green LED, Features Power Boost Function at 120 Percent, Three Year Warranty, Operating Temp. Range -40 Degrees to 70 Degrees C, Standards EN/IEC 60529
