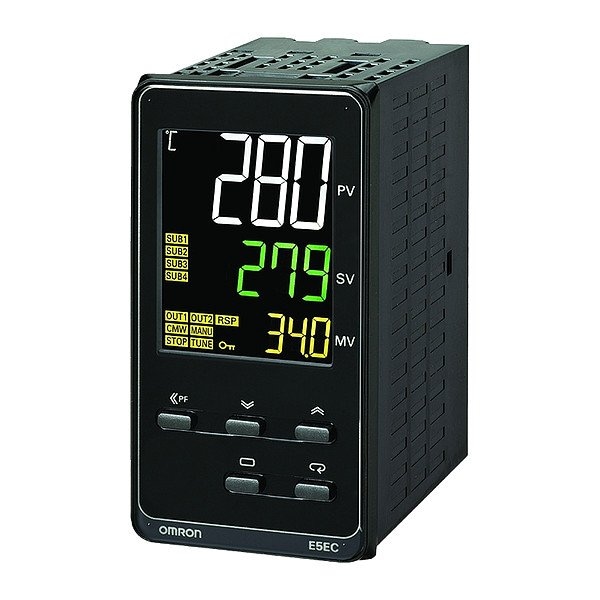

Temperature Controller

Mfr # E5EC-RR4A5M-000
Zoro # G310080430

694.99

Free Shipping & Returns

Key Features

Digital/Analog

Digital

Sensor Type

Linear, RTD, Thermocouple

Description/Special Features

Precise Control Performance, Easy Set-Up, and Exceptional Visibility

Voltage

100-240V AC

DIN Size

1/8

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: E5EC-RR4A5M-000
Zoro #: G310080430
UPC #: 4548583091665
Country of Origin: China

Dimensions

DIN Size: 1/8
Width: 48 mm
Depth: 110 mm
Length: 96 mm
Overall Length: 3 3/4 in
Overall Width: 1 7/8 in
Wire Rope Length: 96 mm

Details

Item: Temperature Controller
Digital/Analog: Digital
Sensor Type: Linear, RTD, Thermocouple
Description/Special Features: Precise Control Performance, Easy Set-Up, and Exceptional Visibility
Voltage: 100-240V AC
Input Voltage: 100 to 240V AC
Switch Function: SPST NO
Output: Relay, (4) Alarm
Temp. Range: Greater Than 700 Degrees C
Control Mode: 2-PID with Auto-Tuning, On/Off Action
Series: E5EC
Power Consumption: 6.6 VA
Alarms: (4) Relays
Standards: CSA C22.2 No. 61010-1, cULus, EAC, EN 61010-1 (IEC 61010-1), Korean Wireless Regulations (Radio Law: KC Mark), Lloyd's Standards, RCM, UL 61010-1
Display Type: Digital
Product Type: Temperature Controller
Temperature - Minimum: 700 Degrees C
Fahrenheit Temperature - Maximum: 4,178 Degrees F
Operating Environment: Indoor
Celsius Temperature - Minimum: -200 Degrees C
Controller Options: 2 Relay Outputs, 4 Auxiliary Outputs
Celsius Temperature - Maximum: 2,305 Degrees C
Includes: Mounting Adapter, Terminal Cover
Display Units: Celsius, Fahrenheit
Accuracy: Thermocouple: ( +/-0.3% of indication value or +/-1 Degrees C, whichever is greater) +/-1 digit max
Fahrenheit Temperature - Minimum: -328 Degrees F

Description

Temperature Controller, Digital, Linear, RTD, Thermocouple Sensor Type, DIN Size 1/8, Input Voltage 100 to 240V AC, Switch Function SPST NO, Output Relay, (4) Alarm, Temp. Range greater than 700 Degrees C, Control Mode 2-PID with Auto-Tuning, On/Off Action, Length 96 mm, Width 48 mm, Depth 110 mm, Precise Control Performance, Easy Set-Up, and Exceptional Visibility, Alarms (4) Relays, Power Consumption 6.6 VA
