  13. Time Delay Relay, 7 Functions 24 to 230V AC, 24 to 48V DC, SPDT

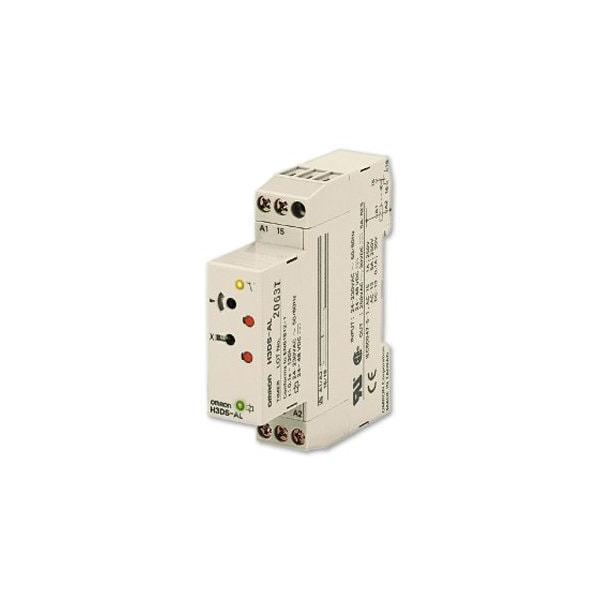

Omron Time Delay Relay, 7 Functions 24 to 230V AC, 24 to 48V DC, SPDT H3DS-ML AC24-230/DC24-48 - main

Time Delay Relay, 7 Functions 24 to 230V AC, 24 to 48V DC, SPDT

  • Mfr # H3DS-ML AC24-230/DC24-48

  • Zoro # G010707491

product price: $131.99
/ea
Free Shipping & Returns

Key Features

Delay Function
Flicker Off Start, Flicker On Start, Interval, On Delay, One Shot Output, Signal Off Delay, Signal On/OFF Delay
Number of Delay Functions
7
Minimum Time Setting
0.1 sec
Maximum Time Setting
1.2 sec
Number of Pins
6
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H3DS-ML AC24-230/DC24-48
Zoro #
G010707491
UPC #
4548583753020
Country of Origin
Indonesia

Dimensions

Body Depth
2.91 in
Overall Depth
2.91 in
Body Width
0.68 in
Body Height
0.68 in

Details

Item
Time Delay Relay
Delay Function
Flicker Off Start, Flicker On Start, Interval, On Delay, One Shot Output, Signal Off Delay, Signal On/OFF Delay
Number of Delay Functions
7
Minimum Time Setting
0.1 sec
Maximum Time Setting
1.2 sec
Number of Pins
6
Coil Voltage
24 to 230V AC, 24 to 48V DC
Current Rating
0.15 A
Contact Form
SPDT
Contact Rating (AC)
1 A @ 250V AC, 5 A @ 250V AC
Contact Rating (DC)
0.50 A @ 125V, 5A @ 30V
Standards
250 V 1 A/DC-13, 250 V 5A/AC-15, 30 V 0.1 A), Conforms to EN 61812-1, IEC 60664-1 4 kV/2, VDE 0106/P100, Output Category According to IEC 60947-5-1 (AC-13, UL508, CSA C22.2 No. 14
Input Voltage
24 to 230V AC, 24 to 48V DC
Contact Material
Silver Alloy
Series
H3DS
Electrical Connection
Screw Terminal
Maximum Switching Voltage
125V DC
Mechanical Operating Durability
1,000,000
IP Rating
IP20; IP30
Maximum Operating Temperature
55 Degrees C
Adjustment Interface
Analog
Weight
100 g
Mounting Style
DIN Rail
Electrical Operating Durability
100,000
Frequency
50/60 Hz
Minimum Operating Temperature
-10 Degrees C
Relay Operation
Solid State
Power Consumption
32 VA
Operating Time Accuracy
+/-1% +/-10 ms in a range of 1.2 s, +/-1% FS max

Description

Timer, Coil Voltage 24 to 230V AC, 24 to 48V DC, Contact Form SPDT, Contact Rating (AC) 1.00 A @ 250V (Inductive Load), 5 A @ 250V (Resistive Load), Contact Rating (DC) 0.50 A @ 125V (Resistive Load), 5A @ 30V (Resistive Load), Current Rating 0.15 A, Number of Delay Functions 7, Delay Function Flicker Off Start, Flicker On Start, Interval, On Delay, One Shot Output, Signal Off Delay, Signal On/OFF Delay, Electrical Connection Screw Terminal, IP Rating IP20; IP30
