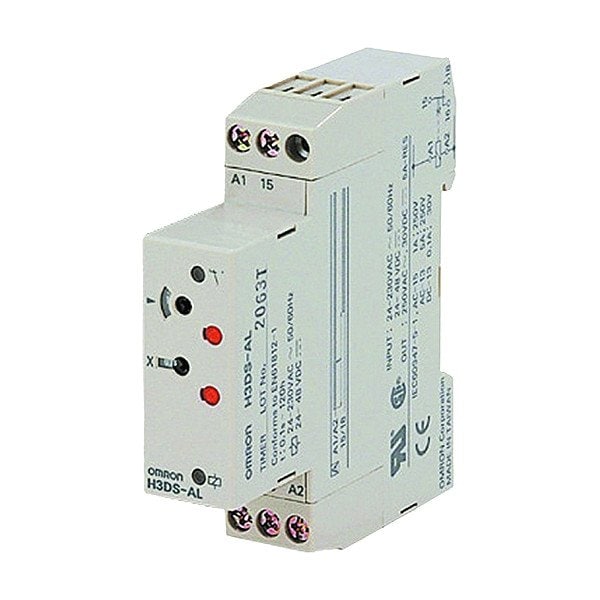

Timer 17.5mm TIMER DIN. MNT.

  • Mfr # H3DS-AL AC24-230/DC24-48

  • Zoro # G110080135

product price:  $91.55
/ea

Key Features

Contact Form
SPDT
Standards
250 V 1 A/DC-13, 250 V 5A/AC-15, 30 V 0.1 A), Conforms to EN 61812-1, IEC 60664-1 4 kV/2, VDE 0106/P100, Output Category According to IEC 60947-5-1 (AC-13, UL508, CSA C22.2 No. 14
Series
H3DS
Contact Material
Silver Alloy
Input Voltage
24 to 230V AC, 24 to 48V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H3DS-AL AC24-230/DC24-48
Zoro #
G110080135
UPC #
4548583753006
Country of Origin
Indonesia

Dimensions

Body Depth
2.91 in
Overall Depth
2.91 in
Body Height
0.68 in
Body Width
0.68 in

Details

Item
Timer
Contact Form
SPDT
Standards
250 V 1 A/DC-13, 250 V 5A/AC-15, 30 V 0.1 A), Conforms to EN 61812-1, IEC 60664-1 4 kV/2, VDE 0106/P100, Output Category According to IEC 60947-5-1 (AC-13, UL508, CSA C22.2 No. 14
Series
H3DS
Contact Material
Silver Alloy
Input Voltage
24 to 230V AC, 24 to 48V DC
Electrical Connection
Screw Terminal
Electrical Operating Durability
100,000
Minimum Operating Temperature
14 Degrees F
Maximum Operating Temperature
131 Degrees F
Number of Delay Functions
7
Minimum Time Setting
0.1 sec
Frequency
50/60 Hz
Maximum Time Setting
1.2 sec
Power Consumption
32 VA
Operating Time Accuracy
+/-1% +/-10 ms in a range of 1.2 s, +/-1% FS max
Relay Operation
Solid State
Mechanical Operating Durability
1,000,000
Mounting Style
DIN Rail
IP Rating
IP20; IP30
Coil Voltage
24 to 230V AC, 24 to 48V DC
Adjustment Interface
Analog
Current Rating
0.15 A
Delay Function
ON Delay
Weight
100 g
Contact Rating (AC)
1.00 A @ 250V (Inductive Load), 5 A @ 250V (Resistive Load)
Maximum Switching Voltage
125V DC
Contact Rating (DC)
0.50 A @ 125V (Resistive Load), 5A @ 30V (Resistive Load)
Number of Pins
6

Description

Timer, Coil Voltage 24 to 230V AC, 24 to 48V DC, Contact Form SPDT, Contact Rating (AC) 1.00 A @ 250V (Inductive Load), 5 A @ 250V (Resistive Load), Contact Rating (DC) 0.50 A @ 125V (Resistive Load), 5A @ 30V (Resistive Load), Current Rating 0.15 A, Number of Delay Functions 7, Delay Function ON Delay, Electrical Connection Screw Terminal, IP Rating IP20; IP30, Input Voltage 24 to 230V AC, 24 to 48V DC, Minimum Time Setting 0.1 sec, Maximum Time Setting 1.2 sec, Number of Pins 6
