  13. W-Bracket, Enclosed Power Relay, Square, 25 A, 10 Pins, Quick Connect

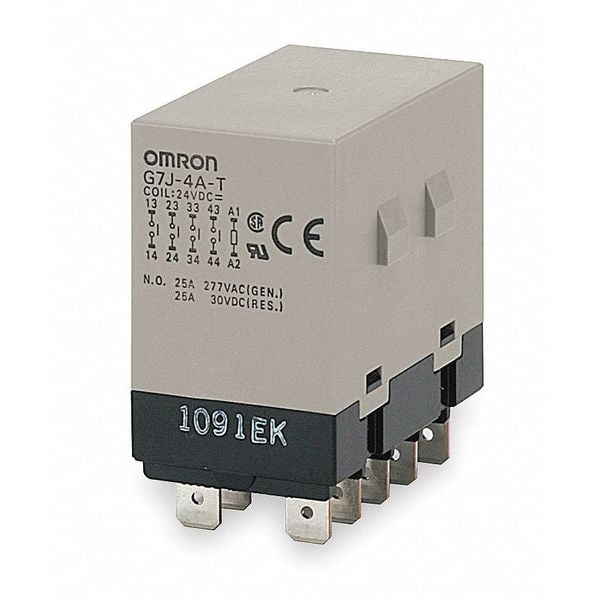

Omron W-Bracket, Enclosed Power Relay, Square, 25 A, 10 Pins, Quick Connect G7J-3A1B-T-W1-AC200/240 - main

W-Bracket, Enclosed Power Relay, Square, 25 A, 10 Pins, Quick Connect

  • Mfr # G7J-3A1B-T-W1-AC200/240

  • Zoro # G0780884

product price: $44.19
/ea

Key Features

Mounting Style
W-Bracket
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
10
Coil Voltage
200/240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G7J-3A1B-T-W1-AC200/240
Zoro #
G0780884
UPC #
-
Country of Origin
Japan

Dimensions

Dimensions
2.52"H, 1.36"W, 2.03"D
Overall Height - Relay
2.24 in
Mounting Hole Diameter
0.18 in
Body Depth
2.15 in
Flat Pin Width
0.031 in
Body Width
1.36 in
Overall Depth
2.52 in
Body Height
2.11 in

Details

Item
Enclosed Power Relay
Mounting Style
W-Bracket
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
10
Coil Voltage
200/240V AC
Current Rating
25 A
Contact Form
3PST-NO, SPST-NC
Contact Rating (AC)
25 A @ 240V, 8 A @ 240V
Contact Rating (DC)
25 A @ 30V (NO), 8 A @ 30V (NC)
Contact Amp Rating (Inductive)
25A @ 220VAC (NO), 8A @ 220VAC (NC)
Contact Material
Silver Alloy
Number of Poles
4
Power Consumption - Relay
2.6 VA
Features
Includes Mfr. No. R99-04-FOR-G5F (1YAX1) Mounting Bracket, Miniature Hinge For Maximum Switching Power, No Contact Chattering for Momentary Voltage Drops Up to 50% of Rated Voltage
Contact Amp Rating (Resistive)
25A @ 220VAC (NO), 8A @ 220VAC (NC)
Hz
50/60
Coil Rating
2.6VA, 2.0W
Standards
RoHS Compliant
Status Indicator
No Indicator
Operating Current
25 A at 220V AC (Inductive Load NO), 25 A at 220V AC (Resistive Load NO), 25 A at 30V DC (Resistive Load NO)
Minimum Switching Current
100 mA
Horsepower @ 240V AC
3 hp
Series
G7J Series
Response Time
50 msec
Insulation Resistance
1,000 megaohm
Motor Rated
Yes
Resistance Properties
Flame-Resistant
Mechanical Operating Durability
1,000,000
Horsepower @ 120V AC
1 1/2 hp
Maximum Switching Voltage
125V DC, 250V AC
Maximum Operating Temperature
140 Degrees F
Input Voltage
200/240V AC
Power Consumption
1.8 VA, 2.6 VA
Minimum Operating Temperature
-13 Degrees F
Push-To-Test Method
Manual Push Test Button
Dielectric Strength
2,000V AC between Contacts of the Same Polarity, 4,000V AC between Coil and Contact, 4,000V AC between Contacts of Different Polarity
Electrical Operating Durability
100,000
Includes
R99-04 W-Brackets
Frequency
50/60 Hz
For Use With
Air Conditioners, Copy Machines, Facsimile Machines, Food Processing Equipment, Heater Switching Controllers, Inverters, Motors, Office Equipment, Packers, Power Tools
Sealing
Semi-Sealed

Description

Enclosed Power Relay, Base Shape Square, Coil Voltage 200/240V AC, Contact Form 3PST-NO, SPST-NC, Current Rating 25 A, Electrical Connection Quick-Connect, Flat Pin Width 0.031 in, Number of Pins 10, Sealing Semi-Sealed, Status Indicator No Indicator, Contact Rating (AC) 25 A @ 240V (NO), 8 A @ 240V (NC), Contact Rating (DC) 25 A @ 30V (NO), 8 A @ 30V (NC), Horsepower @ 120V AC 1 1/2 hp, Horsepower @ 240V AC 3 hp, Mounting Style W-Bracket, Push-To-Test Method Push Button, Body Depth 2.15 in
