  9. Carbide Milling Insert, ZDKT, TiN-TiB2

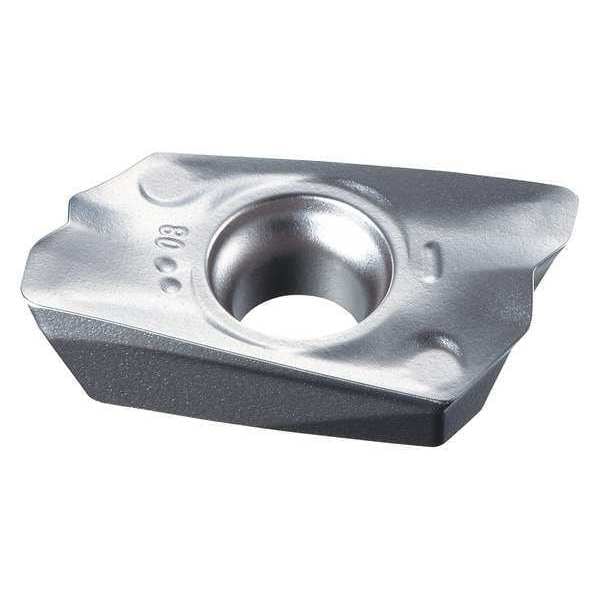

Osg Carbide Milling Insert, ZDKT, TiN-TiB2 7816056 - main

Carbide Milling Insert, ZDKT, TiN-TiB2

  • Mfr # 7816056

  • Zoro # G3708699

product price: $36.89
/ea

Key Features

Stainless (M) Compatibility
Yes
Cast Iron (K) Compatibility
No
Nose Radius
0.81mm
Insert Application
Medium
Coating
TiN-TiB2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
7816056
Zoro #
G3708699
UPC #
-
Country of Origin
Luxembourg

Dimensions

Nose Radius
0.81mm
Insert Thickness
5.56mm
Mounting Hole Dia.
4.50mm
Insert Size
150508
Through Hole Inside Dia.
4.50mm
Corner Radius
0.80mm
Width
9.30mm
Cutting Edge Length
15.00mm
Depth of Cut
1.60mm
Thickness
5.56mm

Details

Stainless (M) Compatibility
Yes
Cast Iron (K) Compatibility
No
Insert Application
Medium
Coating
TiN-TiB2
Hardened (H) Compatibility
Yes
Workpiece Compatibility
Hardened (H), Stainless (M), Super Alloy (S)
Mounting Style
Screw
Rake
15 Degrees
Steel (P) Compatibility
No
For Use With
Indexable Ballnose End Mills
Insert Material
Carbide
Grade
XC5040
Non Ferrous (N) Compatibility
No
No. of Edges
2
Cutting Direction
Right Hand
Chip-Breaker
Yes
Super Alloy (S) Compatibility
Yes
Insert Shape
Parallelogram
Insert Style
ZDKT
Item
Parallelogram Milling Insert
ISO Number
ZDKT150508ER-SM
Series
78PSE
Shape
Parallelogram
Coating Process
CVD
For Toolholder
PSE11R016SF8-2, PSE11R017SF8-2, PSE11R018SF8-2, PSE11R020SF10-3, PSE11R021SF10-3, PSE11R022SF10-3, PSE11R025SF12-4, PSE11R026SF12-3, PSE11R028SF12-4, PSE11R032SF16-5, PSE11R033SF16-3, PSE11R035SF16-5, PSE11R040SF16-6, PSE15R025SF12-2, PSE15R026SF12-2, PSE15R028SF12-2, PSE15R032SF16-3, PSE15R033SF16-3, PSE15R035SF16-3, PSE15R040SF16-4
Manufacturer Grade
XC5040
Cutting Application
Medium
Hole Type
40 Degrees to 60 Degrees Countersink Hole
Measurement System
Metric
Secondary Material Application ISO Code
M
Chip-Breaker Code
SM
Clearance Angle
15 Degrees
Material - Machining
Carbide
Primary Material Application ISO Code
S
Number of Cutting Edges
2
Features
Composed of a Tough Carbide Material with an Oxidation-Resistant and High-Lubricity Coating
Primary Material Application
Nickel, Titanium
Secondary Material Application
Stainless Steel
Insert Holding Type
Screw

Description

Parallelogram Milling Insert, 15 Degrees , SM, 15 Degrees
