  6. Jobber Drill, 5.16mm, 140, Carbide

This item is Discontinued.

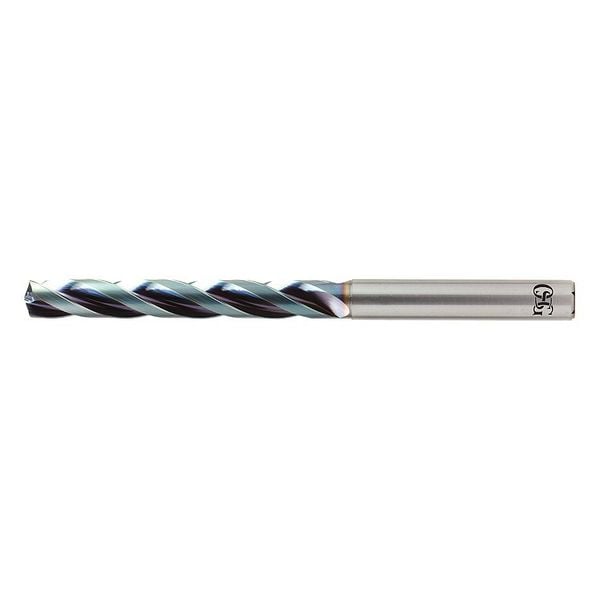

Osg Jobber Drill, 5.16mm, 140, Carbide 561020311

Jobber Drill, 5.16mm, 140, Carbide (Discontinued)

  • Mfr # 561020311
  • Zoro # G9239973
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
561020311
Zoro #
G9239973
UPC #
-
Country of Origin
Japan

Dimensions

Overall Length
100.00 mm
Drill Bit Size
13/64 in
Shank Dia.
15/16 in
Flute Length
42.00 mm
Depth:Dia. Ratio
5xD
Drill Bit Dimension Type
Fractional Inch
Shank Length
58.00 mm
Drill Length Class
Jobber Length
Drill Diameter Tolerance
+0.000/-0.018 mm
Maximum Drilling Depth
42.00 mm

Details

Item
Jobber Length Drill Bit
Drill Bit Point Angle
140 Degrees
Number of Flutes
3
Material - Machining
Carbide
Cutting Direction
Right Hand
Finish - Machining
WD1
Shank Type - Machining
Straight
List Number
5610
Decimal Equivalent
0.2031
Drill Bit Grouping
Drill Bit
Application
Aluminum : Casting, Cast Iron, Low Carbon Steel : 1010, 1018, Medium Carbon Steel : 1035, 1045, High Carbon Steel : 1065, Alloy Steels : 4140, 4340, Die Steels : 20 HrC, Stainless Steels : 400, Stainless Steels : 17-4PH, Hardened Steels : 35 HrC, Hardened Steels : 35-45 HrC
Number of Pieces
1
Coolant Fed
Coolant Through
Standards
Not Rated
Primary Material Application
Cast Iron, Stainless Steel, Steel, Tool and Die Steel
Measurement System
Fractional Inch
Flute Type
Spiral
Primary Material Application ISO Code
K, M, P
Helix Angle
30 Degrees
Sheeter Drill
No
Drill Bit Point Type
R Thinning Point
Secondary Material Application
Aluminum, Hardened Steel , Stainless Steel
Secondary Material Application ISO Code
H, M, N
Series
5610
Number of Coolant Holes
3
Material Grade - Machining
High Performance

Description

Jobber Length Drill Bit, Drill Bit Size 13/64 in, Drill Bit Point Angle 140 Degrees , Carbide, WD1, Decimal Equivalent 0.2031, Fractional Inch, Drill Bit Point Type R Thinning Point, Coolant Through, Number of Coolant Holes 3
