Shop OSG

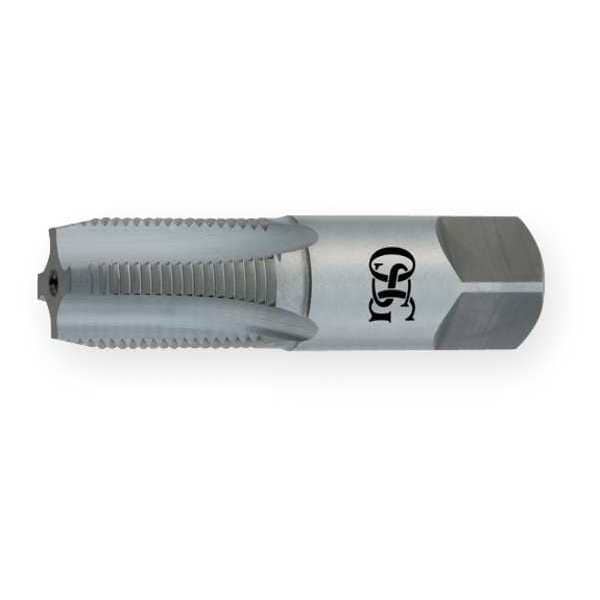

Pipe Tap, 3/4"-14, Taper, 5 Flutes, NPSF

  • Mfr # 1333101

  • Zoro # G7500272

product price:
$
105.99
/ea
Free Shipping & Returns

Key Features

Tap Thread Size
3/4"-14
Tap Chamfer
Taper
Number of Flutes
5
Tap Thread Type
NPSF
Tap Size
3/4"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1333101
Zoro #
G7500272
UPC #
-
Country of Origin
Mexico

Dimensions

Tap Thread Size
3/4"-14
Tap Size
3/4"
Pitch Diameter Limit
Not Rated
Shank Dia.
0.906"
Thread Length
1-3/8"
Overall Length
3-1/4"
Tap Dimension Type
Pipe
Tap Length Standard
ANSI
Shank Length
1 7/8 in
Drill Bit Size
29/32 in, 57/64 in
Thread Size
3/4"-14
Square Size
0.6790 in
75% Thread Drill Size
0.9063 in
Size
3/4"
Shank Diameter
29/32 in
Square Length
0.68 in
Square Width
0.68 in
Wire Rope Length
3 1/4 in
Length
3 1/4 in

Details

Item
Pipe Tap
Tap Chamfer
Taper
Number of Flutes
5
Tap Thread Type
NPSF
Thread Direction
Right Hand
Standards
ANSI
Tap Finish
Black Oxide
Tap Material
High Speed Steel
Number of Pieces
1
Tap Style
Pipe
Tap Grouping
Tap
List Number
109
Cutting Direction - Machining
Right Hand
Series
109
Material Grade - Machining
109
Helix Angle
0 Degrees
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Coolant Fed
Non-Coolant Through
Interrupted Thread
No
Extended Neck
Yes
Thread Standard
NPSF
Tap Shank Standard
ANSI
Threads per Inch
14
Measurement System
Fractional Inch
Primary Material Application ISO Code
K, N, P
Shank Type
Square
Flute Type
Straight

Description

Pipe and Conduit Thread Tap, Thread Size 3/4 In.-14, NPSF, Overall Length 3 1/4 in, High Speed Steel, Black Oxide, Right Hand, Thread Length 1 3/8 in, 75 Percent Thread Drill Size 0.9063 in, Thread Limit Not Applicable, Class of Fit Not Applicable, Number of Flutes 5

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
