  6. Screw Machine Drill, 27/64 in, Carbide, WD1

This item is Discontinued.

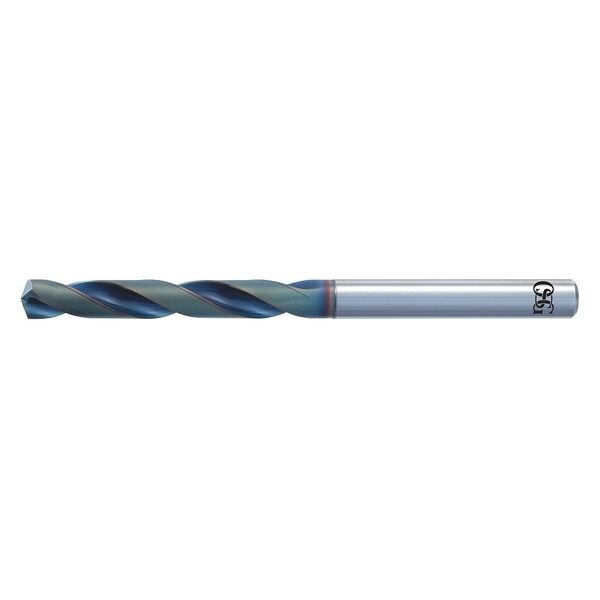

Osg Screw Machine Drill, 27/64 in, Carbide, WD1 541042211

Screw Machine Drill, 27/64 in, Carbide, WD1 (Discontinued)

  • Mfr # 541042211
  • Zoro # G1795337
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
541042211
Zoro #
G1795337
UPC #
-
Country of Origin
Japan

Dimensions

Drill Bit Dimension Type
Fractional Inch
Drill Bit Size
10.72mm
Shank Dia.
12.00mm
Overall Length
118.00mm
Flute Length
71.00mm
Maximum Drilling Depth
71.00mm
Depth x Dia. Ratio
4xD
Sizes Included
10.72mm
Depth:Dia. Ratio
4xD
Shank Length
47.00mm

Details

Item
Jobber Drill Bit
Drill Bit Point Angle
140 Degrees
Drill Bit Material
Solid Carbide
Drill Bit Finish
WD1
Decimal Equivalent
0.4219
Coolant Fed
Non-Coolant Through
Number of Pieces
1
List Number
5410
Coolant Through
No
Grade
General Purpose
Application
For Drilling Cast Iron, Carbon Steel, Alloy Steel, Die Steel and Hardened Steel Under 50 HrC
Point Type
R Thinning
Measurement System
Metric
Material - Machining
Carbide
Helix Angle
30 Degrees
Series
EXOCARB

Description

Jobber Drill Bit, Drill Bit Size 10.72mm, Drill Bit Point Angle 140 Degrees , Carbide, Decimal Equivalent 0.4219, Metric, Non-Coolant Through
