  11. Screw Machine Drill Bit, 16.10mm Size, 140 Degrees Point Angle, Solid Carbide, WD1 Finish

This item is Discontinued.

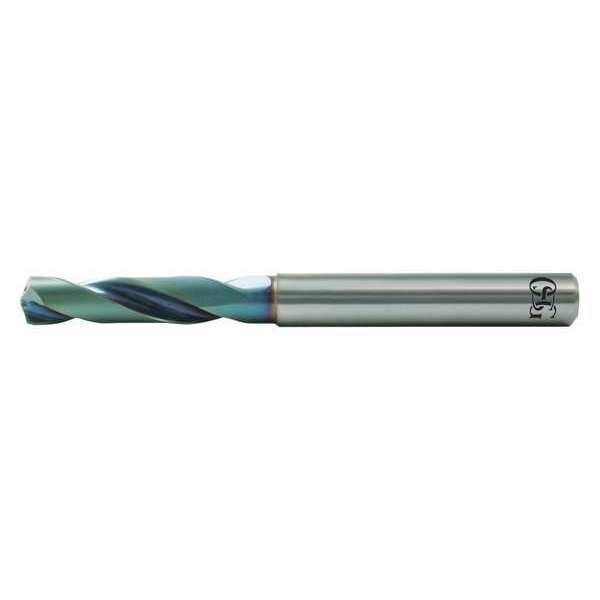

Osg Screw Machine Drill Bit, 16.10mm Size, 140 Degrees Point Angle, Solid Carbide, WD1 Finish 550063311

Screw Machine Drill Bit, 16.10mm Size, 140 Degrees Point Angle, Solid Carbide, WD1 Finish (Discontinued)

  • Mfr # 550063311
  • Zoro # G0585361
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
550063311
Zoro #
G0585361
UPC #
-
Country of Origin
Japan

Dimensions

Drill Bit Dimension Type
Metric
Drill Bit Size
16.10mm
Shank Dia.
17.00mm
Overall Length
150.00mm
Flute Length
83.00mm
Depth:Dia. Ratio
3xD
Depth x Dia. Ratio
3xD

Details

Item
Screw Machine Drill Bit
Shank Type
Straight
Drill Bit Point Angle
140 Degrees
Drill Bit Material
Solid Carbide
Decimal Equivalent
0.6339
Drill Bit Finish
WD1
Flute Type
Spiral
Cutting Direction
Right Hand
Number of Flutes
2
List Number
5500
Grade
High Performance
Application
For Aluminum : 6061, 7071, Aluminum : Casting, Cast Iron, Low Carbon Steel : 1010, 1018, Medium Carbon Steel : 1035, 1045, High Carbon Steel : 1065, Alloy Steels : 4140, 4340, Die Steels : 20 HrC, Stainless Steels : 300, Stainless Steels : 400, Stainless Steels : 17-4PH, Nickel Alloy: Inconel, Titanium: 6Al4V, Hardened Steels : 35 HrC, Hardened Steels : 35-45 HrC
Coolant Through
Yes
Point Type
R Thinning
Coolant Fed
Coolant Through
Series
EXOCARB
Material - Machining
Carbide

Description

Screw Machine Drill Bit, Drill Bit Size 16.10mm, Drill Bit Point Angle 140 Degrees , Carbide, Coolant Through, Cutting Direction Right Hand, Decimal Equivalent 0.6339
