Shop OSG

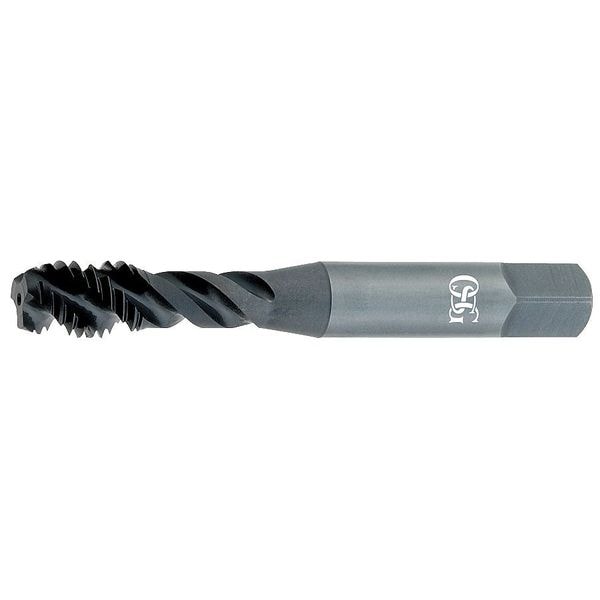

Spiral Flute Tap, #6-32, Modified Bottoming, UNC, 3 Flutes, Uncoated

  • Mfr # 2917500

  • Zoro # G5776827

product price:
$
22.39
/ea

Key Features

Overall Length
2"
Tap Style
Spiral Flute
Shank Dia.
0.141"
Tap Chamfer
Modified Bottoming
Tap Dimension Type
Inch
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2917500
Zoro #
G5776827
UPC #
-
Country of Origin
Brazil

Dimensions

Overall Length
2"
Shank Dia.
0.141"
Tap Dimension Type
Inch
Tap Size
#6
Thread Length
11/16"
Tap Thread Size
#6-32
Shank Length
1 5/16 in
75% Thread Drill Size
#36
55% Thread Drill Size
#32
Thread Size
#6-32
65% Thread Drill Size
#34
Drill Bit Size
0.1055 in, 0.1076 in, 0.1096 in, 0.1116 in, 0.1136 in
Square Size
0.1090 in
Size
#6
Pitch Diameter Limit
H7
Square Length
0.188 in
Shank Diameter
9/64 in
Square Width
0.109 in
Wire Rope Length
2 in
Length
2 in

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Modified Bottoming
Tap Material
High Speed Steel
Number of Flutes
3
Tap Grouping
Tap
Tap Thread Type
UNC
Tap Finish
Bright (Uncoated)
Standards
ANSI
Thread Direction
Right Hand
Cutting Direction - Machining
Right Hand
Series
290
Thread Limit
H7
Thread Standard
UNC
Extended Neck
Yes
Helix Angle
45 Degrees
Features
Increased wear resistance
Coolant Fed
Non-Coolant Through
Measurement System
Pipe
Tap Shank Standard
ANSI
Threads per Inch
32
Primary Material Application
Steel
Secondary Material Application
Cast Iron, Hardened Steel, Stainless Steel, Tool and Die Steel
Primary Material Application ISO Code
P
Material Grade - Machining
Vanadium High Speed Steel
Secondary Material Application ISO Code
H, K, M, P
Shank Type - Machining
Straight
List Number
290
Number of Pieces
1
Shank Type
Square
Tap Application
Blind Hole
Class of Fit
2B

Description

Spiral Flute Tap, Thread Size #6-32, UNC, Overall Length 2 in, Vanadium High Speed Steel, Bright (Uncoated), Thread Length 1/4 in, 75 Percent Thread Drill Size #36, Thread Limit H7, Class of Fit 2B, Thread Direction Right Hand, Number of Flutes 3
