Shop All Spiral Flute 2-Flute Taps
Osg

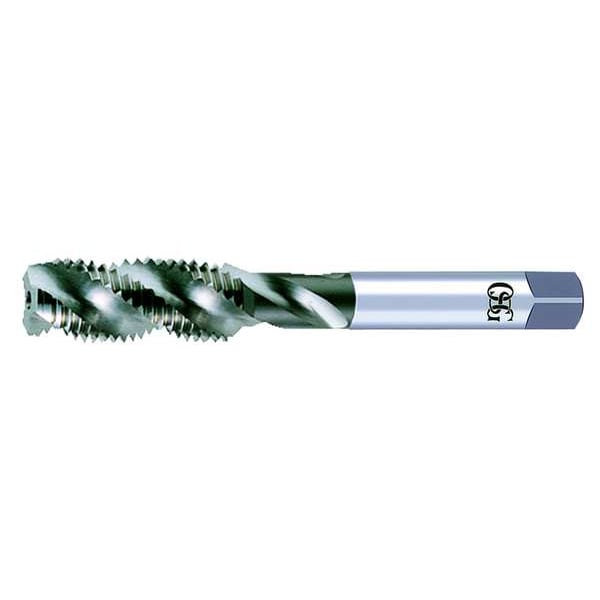

Spiral Flute Tap, Bottoming 2 Flutes

product price: $22.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Overall Length 1-7/8"
  • Tap Thread Size #2-56
  • Tap Chamfer Bottoming
  • Tap Style Spiral Flute
  • Tap Finish Bright
See all product information

Product Information

Dimensions

Overall Length 1-7/8"
Tap Thread Size #2-56
Tap Size #2
Shank Dia. 0.141"
Tap Dimension Type Inch
Thread Length 9/16"
Pitch Diameter Limit H2
65% Thread Drill Size 1.80 mm
Thread Size #2-56
Shank Length 1 19/64 in
55% Thread Drill Size #49
75% Thread Drill Size 1.73 mm
Square Size 0.1090 in

Details

Item Spiral Flute Tap
Tap Chamfer Bottoming
Tap Style Spiral Flute
Tap Finish Bright
Number of Flutes 2
Tap Material High Speed Steel
Measurement System Pipe
List Number S108
Number of Pieces 1
Tap Thread Type UNC
Tap Grouping STI Tap
Thread Direction Right Hand
Cutting Direction - Machining Right Hand
Series S108
Material Grade - Machining S108
Secondary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Secondary Material Application ISO Code K, N, P
Coolant Fed Non-Coolant Through
Thread Standard UNC
Shank Type - Machining Straight
Threads per Inch 56
Thread Limit H2
Primary Material Application ISO Code H, K, M, N, O, P, S
Extended Neck Yes
Primary Material Application All Materials
Helix Angle 50 Degrees

Description

Screw Thread Insert STI Tap, Thread Size #2-56, UNC, Overall Length 1 7/8 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 3/16 in, Tap Chamfer Bottoming, Thread Limit H2, Number of Flutes 2
