Shop OSG

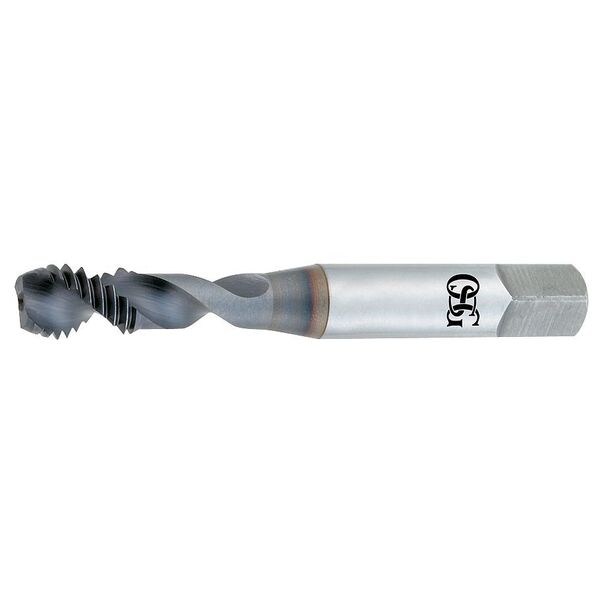

Spiral Flute Tap, Modified Bottoming, 3

  • Mfr # 1305800408

  • Zoro # G9241766

product price:  $27.69
/ea

Key Features

Overall Length
2-3/8"
Tap Style
Spiral Flute
Shank Dia.
0.152"
Tap Chamfer
Modified Bottoming
Tap Dimension Type
Inch
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1305800408
Zoro #
G9241766
UPC #
-
Country of Origin
Japan

Dimensions

Overall Length
2-3/8"
Shank Dia.
0.152"
Tap Dimension Type
Inch
Tap Size
#10
Thread Length
7/8"
Tap Thread Size
#10-32
75% Thread Drill Size
#21
Thread Size
#10-32
55% Thread Drill Size
4.25 mm
Shank Length
1 1/2 in
65% Thread Drill Size
4.15 mm
Drill Bit Size
0.1575 in, 0.1596 in, 0.1616 in, 0.1636 in, 0.1656 in
Square Size
0.1520 in
Size
#10
Pitch Diameter Limit
Not Rated
Square Width
0.152 in
Shank Diameter
3/16 in
Square Length
0.25 in
Wire Rope Length
2 3/8 in

Details

Item
Spiral Flute Tap
Tap Style
Spiral Flute
Tap Chamfer
Modified Bottoming
Tap Material
High Speed Steel
Number of Flutes
3
Tap Grouping
Tap
Thread Direction
Right Hand
Tap Finish
TiCN
Tap Thread Type
UNF
Series
13058
Cutting Direction - Machining
Right Hand
Primary Material Application ISO Code
N
Shank Type - Machining
Straight
Helix Angle
45 Degrees
Features
Eliminates Friction To Enable High Speed Tapping, For Blind Hole Applications, Increased Wear Resistance, Tin Improves Wear Resistance For Extended Tap Life
Thread Standard
UNF
Measurement System
Pipe
Class of Fit
2B
Primary Material Application
Aluminum
Extended Neck
Yes
Threads per Inch
32
Material Grade - Machining
13058
Coolant Fed
Non-Coolant Through
List Number
13058
Number of Pieces
1
Tap Application
Blind Hole
Shank Type
Square

Description

Spiral Flute Tap, Thread Size #10-32, UNF, Overall Length 2 3/8 in, Vanadium High Speed Steel, V, Thread Length 21/64 in, 75 Percent Thread Drill Size #21, Thread Limit Not Applicable, Class of Fit 2B, Thread Direction Right Hand, Number of Flutes 2
