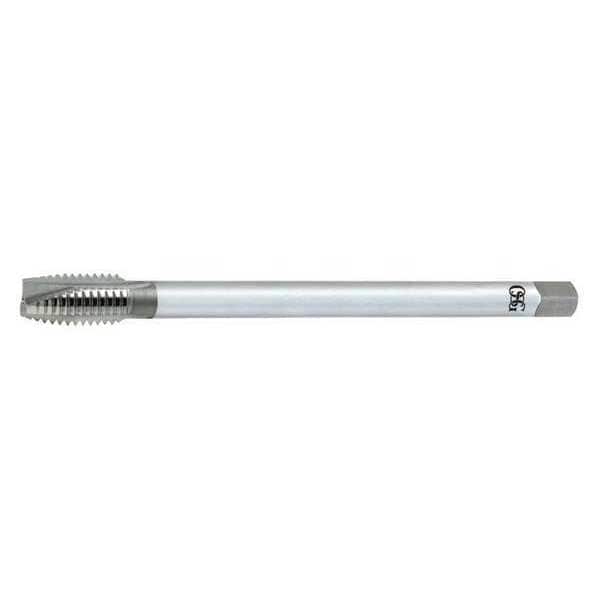

Spiral Point Tap, 1/4"-20, Plug, UNC, 2 Flutes

  • Mfr # 1294900

  • Zoro # G2292263

product price:  $38.75
/ea

Key Features

Shank Dia.
0.255"
Tap Style
Spiral Point
Tap Chamfer
Plug
Tap Dimension Type
Inch
Tap Material
High Speed Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1294900
Zoro #
G2292263
UPC #
-
Country of Origin
Mexico

Dimensions

Shank Dia.
0.255"
Tap Dimension Type
Inch
Tap Size
1/4"
Overall Length
4 in
Thread Length
1"
Tap Thread Size
1/4"-20
Pitch Diameter Limit
H3
65% Thread Drill Size
#5
75% Thread Drill Size
#7
Square Size
0.1900 in
Thread Size
1/4"-20
Tap Length Standard
ANSI
55% Thread Drill Size
#3
Shank Length
2 63/64 in
Size
1/4"
Square Length
0.19 in
Square Width
0.19 in
Shank Diameter
1/4 in

Details

Item
Spiral Point Tap
Tap Style
Spiral Point
Tap Chamfer
Plug
Tap Material
High Speed Steel
Thread Direction
Right Hand
Number of Flutes
2
Tap Grouping
Tap
Tap Finish
Bright (Uncoated)
Tap Thread Type
UNC
List Number
917
Standards
ANSI
Number of Pieces
1
Cutting Direction - Machining
Right Hand
Series
917
Primary Material Application ISO Code
K, N, P
Tap Type
Spiral Point
Measurement System
Fractional Inch
Extended Shank
Yes
Extended Neck
No
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Coolant Fed
Non-Coolant Through
Threads per Inch
20
Thread Standard
UNC
Thread Limit
H3
Material Grade - Machining
917
Tap Shank Standard
ANSI
Spiral Direction
Neutral
Helix Angle
0 Degrees
Class of Fit
2B-3B
Tap Application
Blind Hole

Description

Extension Tap, Thread Size 1/4 In.-20, UNC, Overall Length 4 in, High Speed Steel, Bright (Uncoated), Right Hand, 20
