Shop OSG

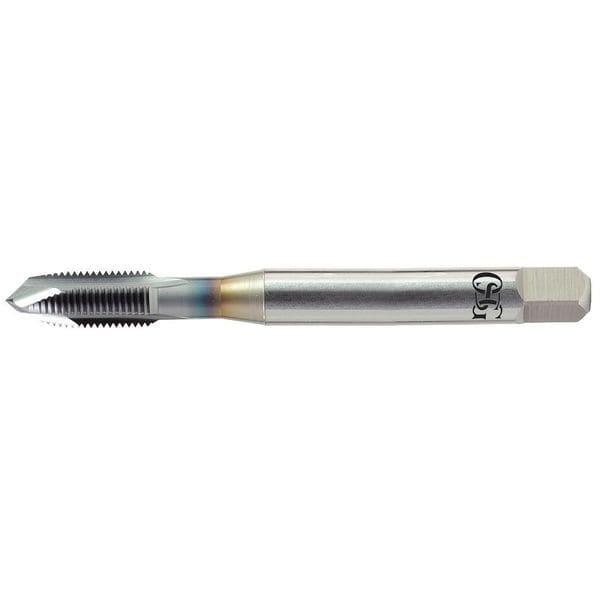

Spiral Point Tap, Plug 3 Flutes

  • Mfr # 1101701008

  • Zoro # G9289585

product price:
$
35.15
/ea

Key Features

Shank Dia.
0.381"
Tap Material
High Speed Steel
Tap Style
Spiral Point
Tap Size
3/8"
Tap Chamfer
Plug
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1101701008
Zoro #
G9289585
UPC #
-
Country of Origin
Mexico

Dimensions

Shank Dia.
0.381"
Tap Size
3/8"
Tap Dimension Type
Inch
Overall Length
4"
Tap Thread Size
3/8"-16
Thread Length
1-1/4"
55% Thread Drill Size
8.40 mm
65% Thread Drill Size
P
Shank Length
2 17/32 in
Drill Bit Size
0.3101 in, 0.3141 in, 0.3182 in, 0.3222 in, 0.3263 in
Square Size
0.2860 in
75% Thread Drill Size
0.3125 in
Tap Length Standard
DIN
Thread Size
3/8"-16
Size
3/8
Pitch Diameter Limit
H3
Square Width
0.286 in
Shank Diameter
3/8 in
Square Length
0.286 in
Wire Rope Length
3 15/16 in
Length
3 15/16 in

Details

Item
Spiral Point Tap
Tap Material
High Speed Steel
Tap Style
Spiral Point
Tap Chamfer
Plug
Number of Flutes
3
Tap Thread Type
UNC
Tap Grouping
Tap
Tap Finish
TiCN
Thread Direction
Right Hand
Cutting Direction - Machining
Right Hand
Series
11017
Secondary Material Application
Hardened Steel, Stainless Steel
Primary Material Application
Cast Iron, Stainless Steel, Steel, Tool and Die Steel
Thread Limit
H3
Thread Standard
UNC
Extended Neck
No
Primary Material Application ISO Code
K, M, P
Tap Shank Standard
ANSI
Measurement System
Fractional Inch
Threads per Inch
16
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Straight
Spiral Direction
Neutral
Secondary Material Application ISO Code
H, M
Helix Angle
0 Degrees
List Number
11017
Number of Pieces
1
Tap Application
Through Hole
Shank Type
Square
Standards
DIN
Class of Fit
2B-3B

Description

Spiral Point Tap, Thread Size 3/8 In.-16, UNC, Overall Length 3 15/16 in, Vanadium High Speed Steel, V, Right Hand, Thread Length 49/64 in, 75 Percent Thread Drill Size 0.3125 in, Thread Limit H3, Class of Fit 2B-3B, Number of Flutes 3
